Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2013-04-09 20:17:26.5 |
| Date & Time (Local) | 1392/1/21 00:47:26.5 |

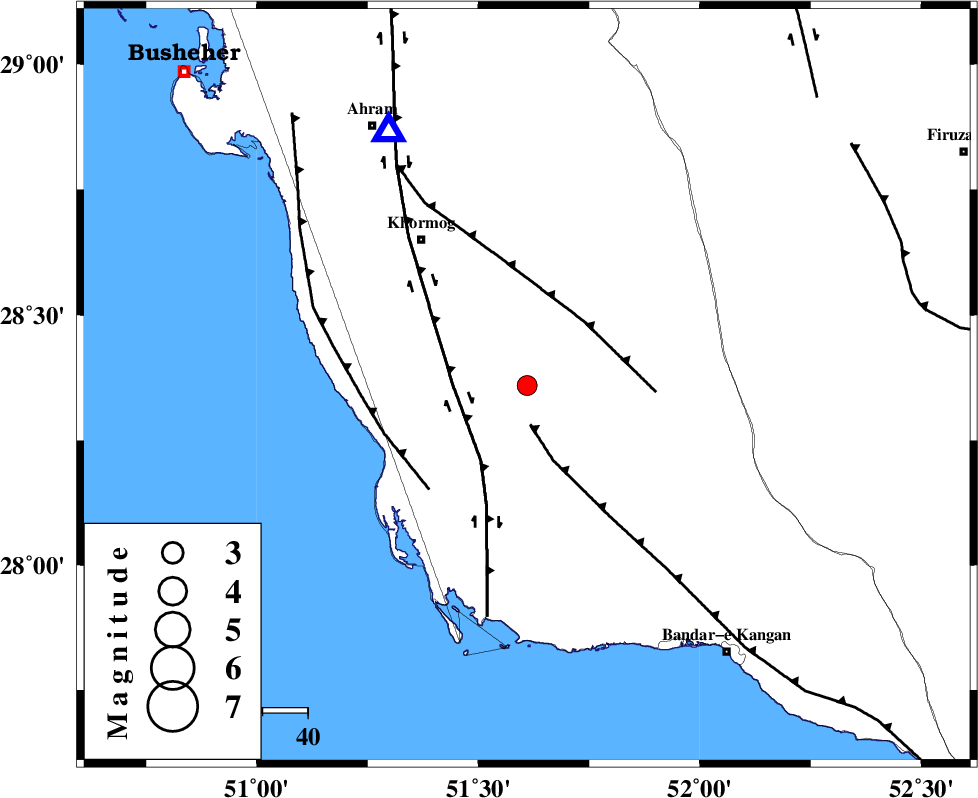

| Location | Lat:28.36 Lon: 51.61 |
| Region | Bushehr Province, 40 km South-East of Khormog |
Nearest Cities |
|
| 10 km North of Kaki, Bushehr Province | |
| 12 km East of Baduleh, Bushehr Province | |
| 15 km West of Shanbeh, Bushehr Province | |
| 23 km North of Abkesh, Bushehr Province | |
| 32 km North East of Ziyarat, Bushehr Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 9 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 16 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 19 km | |
| Number of Phases | 3 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >16.6 km |
| Error in Longitude | 11.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88510 | IIEES | AHRM | N | 525.6 | 0.52 | 2013-04-09 20:17:53 | 2013-04-09 09:41:00 | n |
| 88511 | IIEES | AHRM | E | 429.5 | 0.4 | 2013-04-09 20:18:00 | 2013-04-09 09:41:00 | n |
| 88512 | IIEES | GHIR | E | 188.4 | 0.36 | 2013-04-09 20:18:11 | 2013-04-09 09:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-09 20:17:37 | 0 | y | 63.6 | 331 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-09 20:17:49 | 0 | y | 135 | 93 | |||
| IIEES | KRBR | Z | Pn | E | 2013-04-09 20:18:40 | 0.01 | y | 532 | 69 | |||
