Event Specification
Magnitude |
4.8 |
| Date & Time (UTC) | 2013-04-09 20:54:18.7 |
| Date & Time (Local) | 1392/1/21 01:24:18.7 |

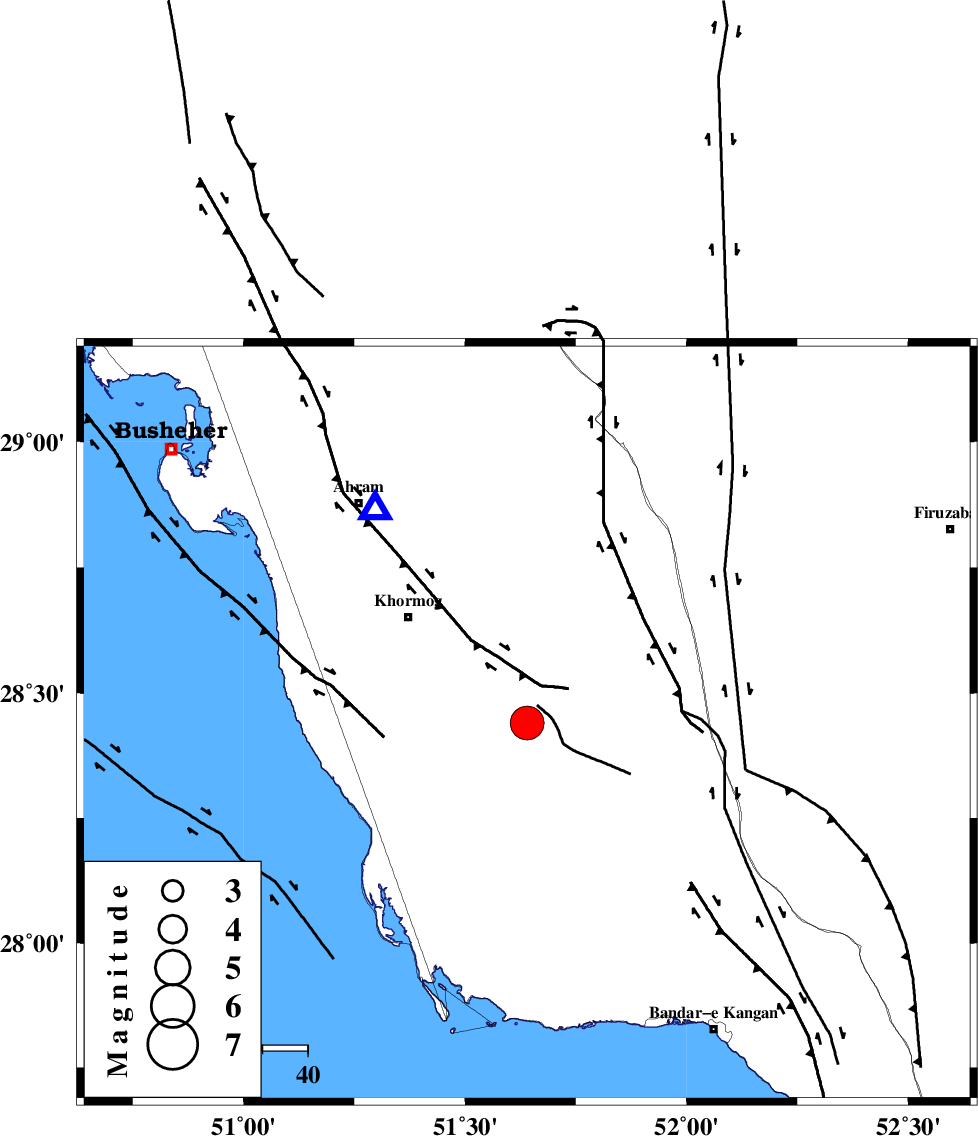

| Location | Lat:28.44 Lon: 51.64 |
| Region | Bushehr Province, 35 km South-East of Khormog |
Nearest Cities |
|
| 13 km North West of Shanbeh, Bushehr Province | |
| 15 km North East of Baduleh, Bushehr Province | |
| 17 km North East of Kaki, Bushehr Province | |
| 31 km South East of Buheyri, Bushehr Province | |
| 33 km North East of Abkesh, Bushehr Province | |
| Depth | 24 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 11 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 18 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 21 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >8.5 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88513 | IIEES | AHRM | N | 63374.4 | 0.52 | 2013-04-09 20:54:47 | 2013-04-09 10:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-09 20:54:28 | -0.15 | y | 57.9 | 324 | |||
| IIEES | AHRM | N | Sg | E | 2013-04-09 20:54:36 | 0.04 | y | 57.9 | 324 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-09 20:54:40 | -0.03 | y | 133 | 97 | |||
| IIEES | GHIR | E | Sg | E | 2013-04-09 20:54:56 | 0.14 | y | 133 | 97 | |||
| IIEES | SHGR | Z | Pn | E | 2013-04-09 20:55:26 | 0.28 | y | 490 | 327 | |||
| IIEES | KRBR | Z | Pn | E | 2013-04-09 20:55:30 | -0.34 | y | 526 | 70 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-04-09 20:55:41 | 0.04 | y | 609 | 345 | |||
