Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-04-13 02:17:23.8 |
| Date & Time (Local) | 1392/1/24 06:47:23.8 |

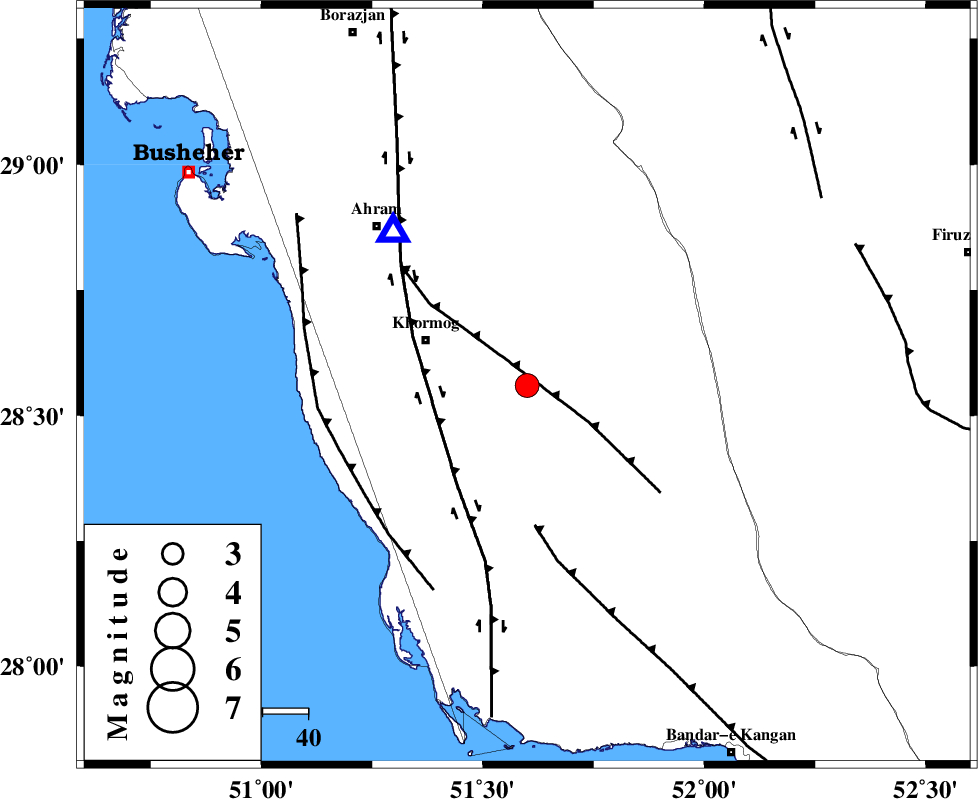

| Location | Lat:28.56 Lon: 51.6 |
| Region | Bushehr Province, 25 km East of Khormog |
Nearest Cities |
|
| 21 km North East of Baduleh, Bushehr Province | |
| 23 km East of Buheyri, Bushehr Province | |
| 25 km North West of Shanbeh, Bushehr Province | |
| 25 km East of Khormog, Bushehr Province | |
| 26 km North of Kaki, Bushehr Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 8 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 21 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 31 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >9.2 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88696 | IIEES | GHIR | E | 814 | 0.52 | 2013-04-13 02:18:13 | 2013-04-13 03:43:00 | n |
| 88697 | IIEES | GHIR | N | 479.6 | 0.52 | 2013-04-13 02:18:16 | 2013-04-13 03:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-13 02:17:32 | 0.01 | y | 45.3 | 319 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-13 02:17:47 | -0.05 | y | 139 | 102 | |||
| IIEES | GHIR | N | Sg | E | 2013-04-13 02:18:04 | 0.05 | y | 139 | 102 | |||
| IIEES | YZKH | Z | Pn | E | 2013-04-13 02:18:35 | 0.03 | y | 513 | 33 | |||
| IIEES | KRBR | Z | Pn | E | 2013-04-13 02:18:36 | -0.03 | y | 526 | 71 | |||
