Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2013-04-16 14:36:52.0 |
| Date & Time (Local) | 1392/1/27 19:06:52.0 |

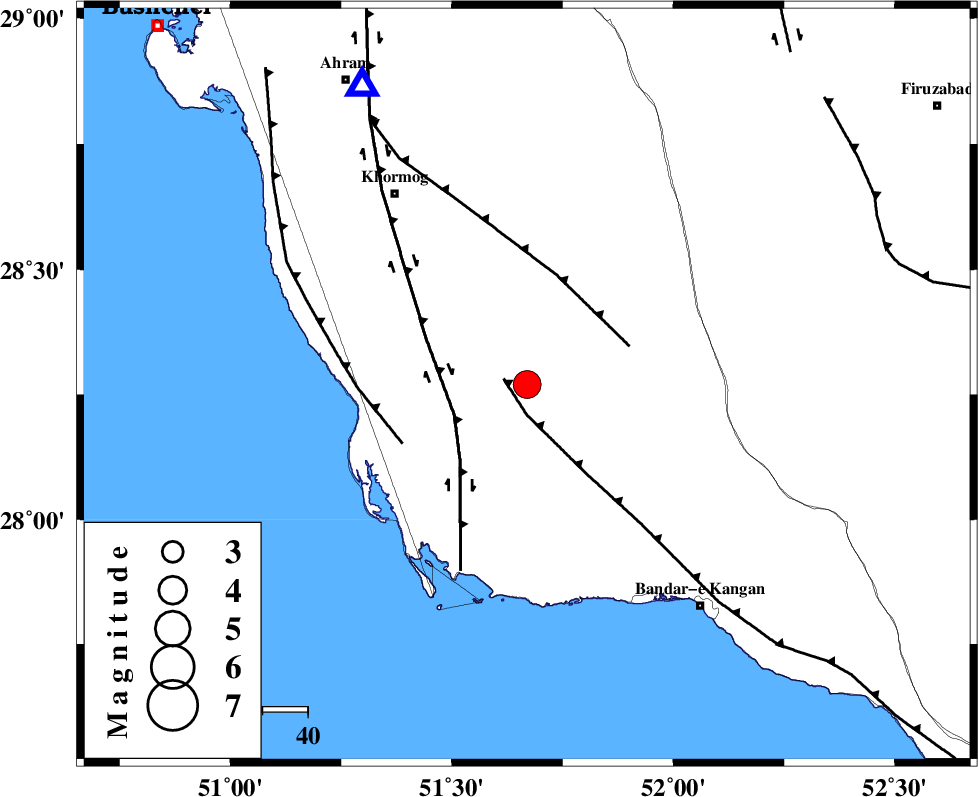

| Location | Lat:28.27 Lon: 51.67 |
| Region | Bushehr Province, 51 km South-East of Khormog |
Nearest Cities |
|
| 16 km South of Shanbeh, Bushehr Province | |
| 17 km East of Kaki, Bushehr Province | |
| 18 km North East of Abkesh, Bushehr Province | |
| 22 km South East of Baduleh, Bushehr Province | |
| 23 km North of Abdan, Bushehr Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 5 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 17 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 24 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >8.9 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 3.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88756 | IIEES | AHRM | N | 5338.4 | 0.44 | 2013-04-16 14:37:16 | 2013-04-16 04:33:00 | n |
| 88757 | IIEES | GHIR | N | 2565.2 | 0.48 | 2013-04-16 14:37:37 | 2013-04-16 04:33:00 | n |
| 88758 | IIEES | GHIR | E | 2298.8 | 0.38 | 2013-04-16 14:37:37 | 2013-04-16 04:33:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-16 14:37:05 | 0.04 | y | 75.5 | 331 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-16 14:37:13 | 0.05 | y | 129 | 89 | |||
| IIEES | GHIR | N | Sg | E | 2013-04-16 14:37:29 | -0.1 | y | 129 | 89 | |||
| IIEES | KRBR | Z | Pn | E | 2013-04-16 14:38:05 | 0.07 | y | 531 | 68 | |||
| IIEES | YZKH | Z | Pn | E | 2013-04-16 14:38:06 | 0.23 | y | 537 | 31 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-04-16 14:38:17 | -0.28 | y | 628 | 345 | |||
| IIEES | GHVR | Z | Pn | E | 2013-04-16 14:38:25 | 0.06 | y | 690 | 357 | |||
| IIEES | ASAO | Z | Pn | E | 2013-04-16 14:38:28 | -0.17 | y | 714 | 348 | |||
