Event Specification
Magnitude |
4.8 |
| Date & Time (UTC) | 2013-04-18 10:39:37.8 |
| Date & Time (Local) | 1392/1/29 15:09:37.8 |

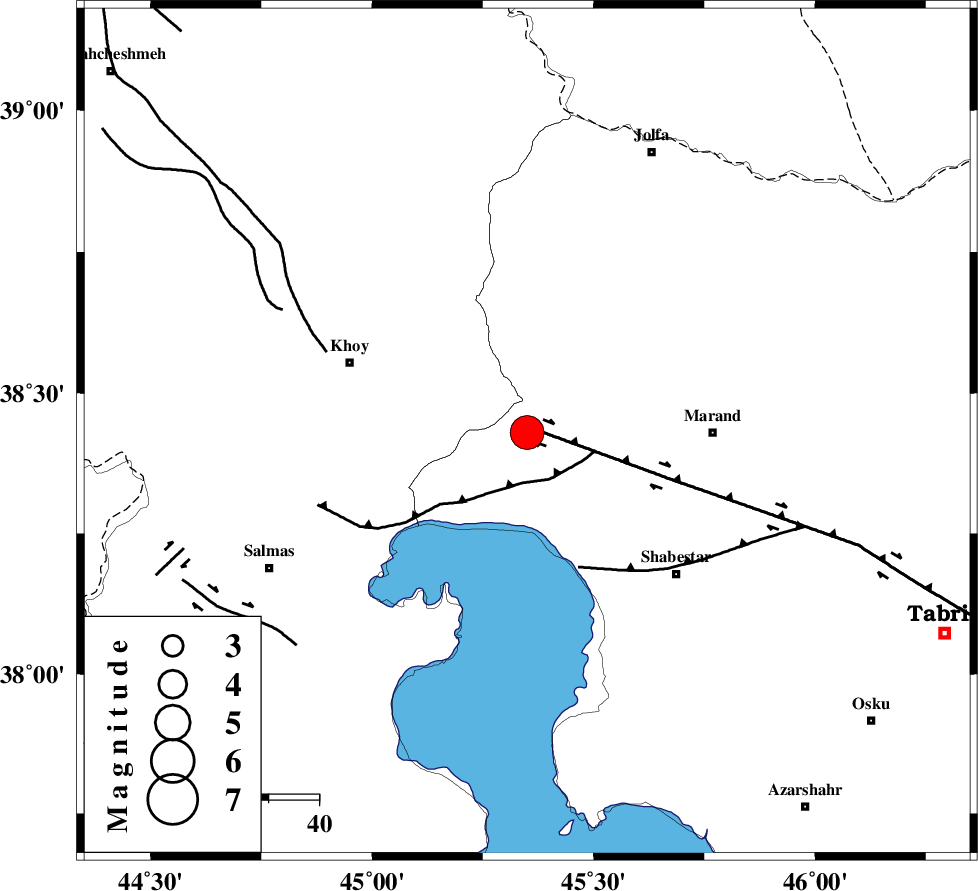

| Location | Lat:38.43 Lon: 45.35 |
| Region | Azarbaijan Sharghi Province, 36 km West of Marand |
Nearest Cities |
|
| 11 km North of Jahregan, Azarbaijan Sharghi Province | |
| 14 km North of Tasuj, Azarbaijan Sharghi Province | |
| 19 km West of Kashksaray, Azarbaijan Sharghi Province | |
| 27 km South West of Yekan kahriz, Azarbaijan Sharghi Province | |
| 27 km West of Yamchi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 10 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 28 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88808 | IIEES | ZNJK | N | 2397.9 | 0.52 | 2013-04-18 10:41:18 | 2013-04-18 12:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2013-04-18 10:39:57 | -0.07 | y | 118 | 331 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-04-18 10:40:29 | 0.19 | y | 353 | 123 | |||
| IIEES | SNGE | Z | Sg | E | 2013-04-18 10:41:32 | -0.1 | y | 411 | 154 | |||
| IIEES | CHTH | N | Sg | E | 2013-04-18 10:42:20 | -0.15 | y | 584 | 117 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-04-18 10:41:08 | 0.15 | y | 666 | 140 | |||
