Event Specification
Magnitude |
5 |
| Date & Time (UTC) | 2013-04-19 21:41:05.3 |
| Date & Time (Local) | 1392/1/31 02:11:05.3 |

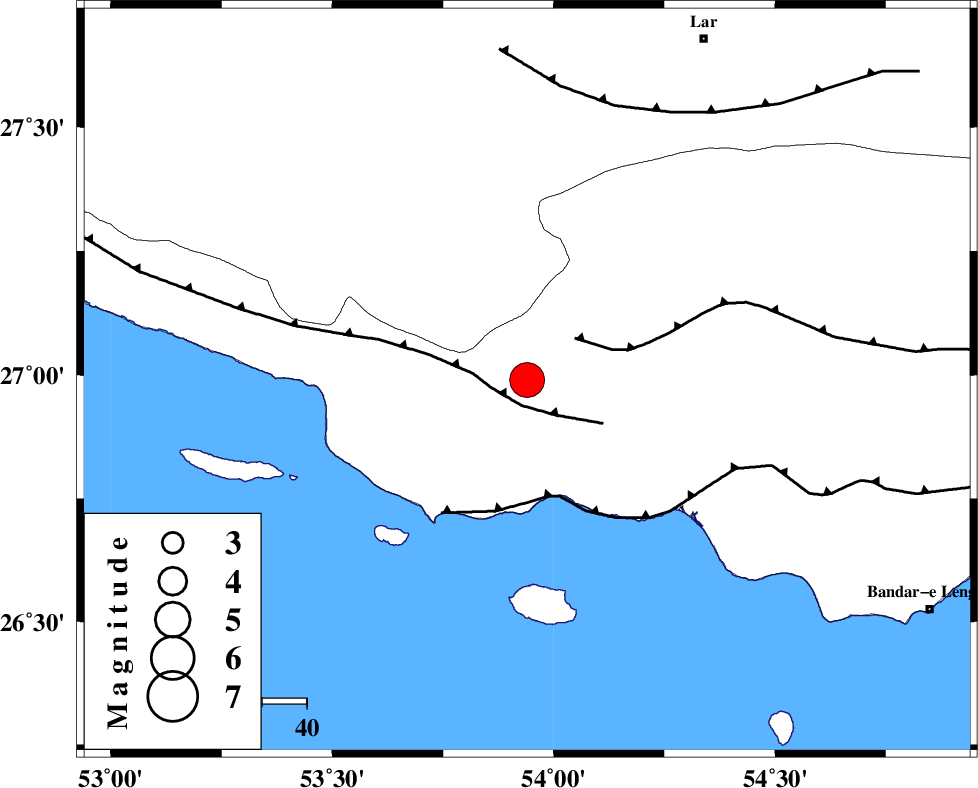

| Location | Lat:26.99 Lon: 53.94 |
| Region | Hormozgan Province, 48 km South-West of Bastak |
Nearest Cities |
|
| 28 km South East of Ahl, Fars Province | |
| 34 km West of Jenah, Hormozgan Province | |
| 41 km South East of Ashkenan, Fars Province | |
| 48 km South West of Bastak, Hormozgan Province | |
| 57 km South of Bagh, Fars Province | |
| Depth | 34 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 6 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 14 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 27 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >7.5 km |
| Error in Longitude | 5 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88842 | IIEES | GHIR | E | 17713 | 0.48 | 2013-04-19 21:41:59 | 2013-04-19 11:04:00 | n |
| 88843 | IIEES | GHIR | N | 18900.3 | 0.48 | 2013-04-19 21:42:01 | 2013-04-19 11:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2013-04-19 21:41:33 | -0.04 | y | 172 | 327 | |||
| IIEES | GHIR | E | Sg | E | 2013-04-19 21:41:53 | 0.02 | y | 172 | 327 | |||
| IIEES | AHRM | Z | Pn | E | 2013-04-19 21:41:52 | 0.09 | y | 333 | 309 | |||
| IIEES | YZKH | Z | Pn | E | 2013-04-19 21:42:26 | 0.28 | y | 602 | 6 | |||
| IIEES | BSRN | Z | Pn | E | 2013-04-19 21:42:44 | 0.14 | y | 747 | 41 | |||
| IIEES | TABS | Z | Pn | E | 2013-04-19 21:42:50 | -0.23 | y | 799 | 22 | |||
| IIEES | GHVR | Z | Pn | E | 2013-04-19 21:42:58 | -0.63 | y | 870 | 343 | |||
