Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2013-04-20 02:24:31.1 |
| Date & Time (Local) | 1392/1/31 06:54:31.1 |

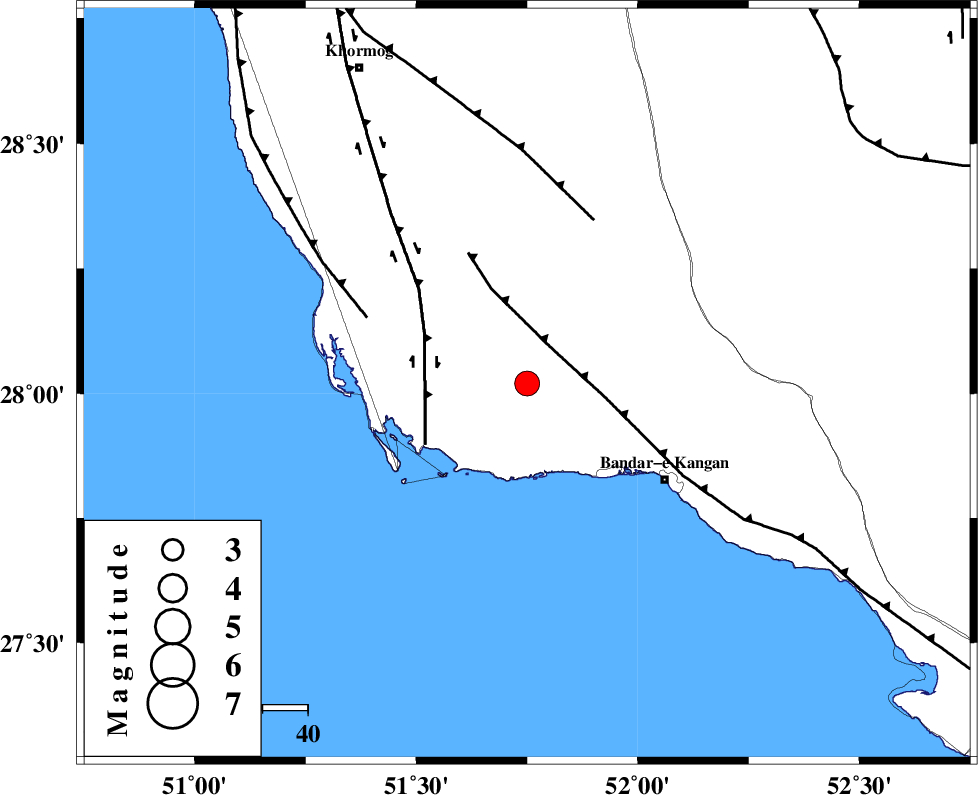

| Location | Lat:28.02 Lon: 51.75 |
| Region | Bushehr Province, 37 km North-West of Bandar-e kangan |
Nearest Cities |
|
| 7 km of Abdan, Bushehr Province | |
| 27 km South East of Abkesh, Bushehr Province | |
| 28 km East of Bardkhun, Bushehr Province | |
| 32 km West of Riz, Bushehr Province | |
| 37 km North West of Bandar-e kangan, Bushehr Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 10 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 25 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 38 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 3 |
| Error in Latitude | >7.8 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88848 | IIEES | GHIR | N | 777.3 | 0.4 | 2013-04-20 02:25:18 | 2013-04-20 04:04:00 | n |
| 88849 | IIEES | KRBR | E | 61.4 | 0.88 | 2013-04-20 02:26:49 | 2013-04-20 04:04:00 | n |
| 88850 | IIEES | KRBR | N | 20.8 | 0.48 | 2013-04-20 02:26:50 | 2013-04-20 04:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-20 02:24:48 | -0.19 | y | 104 | 335 | |||
| IIEES | AHRM | N | Sg | E | 2013-04-20 02:25:02 | 0.08 | y | 104 | 335 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-20 02:24:52 | -0.23 | y | 125 | 76 | |||
| IIEES | GHIR | N | Sg | E | 2013-04-20 02:25:08 | -0.03 | y | 125 | 76 | |||
| IIEES | KRBR | N | Pn | E | 2013-04-20 02:25:46 | 0.58 | y | 534 | 65 | |||
