Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-04-22 21:28:55.2 |
| Date & Time (Local) | 1392/2/3 01:58:55.2 |

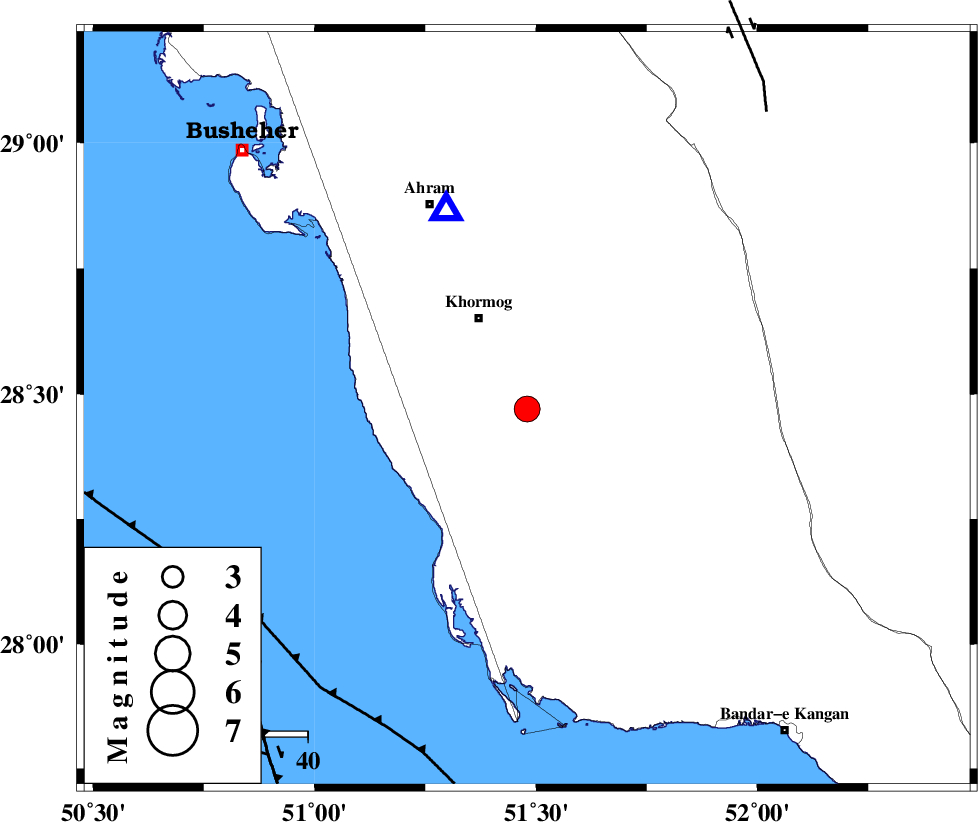

| Location | Lat:28.47 Lon: 51.48 |
| Region | Bushehr Province, 23 km South-East of Khormog |
Nearest Cities |
|
| 9 km North of Baduleh, Bushehr Province | |
| 15 km North of Kaki, Bushehr Province | |
| 17 km South East of Buheyri, Bushehr Province | |
| 23 km South East of Khormog, Bushehr Province | |
| 29 km North West of Shanbeh, Bushehr Province | |
| Depth | 20 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 10 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 17 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 25 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >7.2 km |
| Error in Longitude | 5 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88899 | IIEES | AHRM | N | 6665.1 | 0.56 | 2013-04-22 21:29:19 | 2013-04-22 11:14:00 | n |
| 88900 | IIEES | AHRM | E | 5273.4 | 0.36 | 2013-04-22 21:29:19 | 2013-04-22 11:14:00 | n |
| 88901 | IIEES | GHVR | N | 19.4 | 0.6 | 2013-04-22 21:31:42 | 2013-04-22 11:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-22 21:29:03 | 0 | y | 47.1 | 337 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-22 21:29:19 | 0.03 | y | 149 | 98 | |||
| IIEES | GHIR | N | Sg | E | 2013-04-22 21:29:37 | -0.03 | y | 149 | 98 | |||
| IIEES | YZKH | Z | Pn | E | 2013-04-22 21:30:07 | 0.05 | y | 527 | 34 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-04-22 21:30:17 | -0.06 | y | 602 | 346 | |||
