Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-04-22 17:48:28.7 |
| Date & Time (Local) | 1392/2/2 22:18:28.7 |

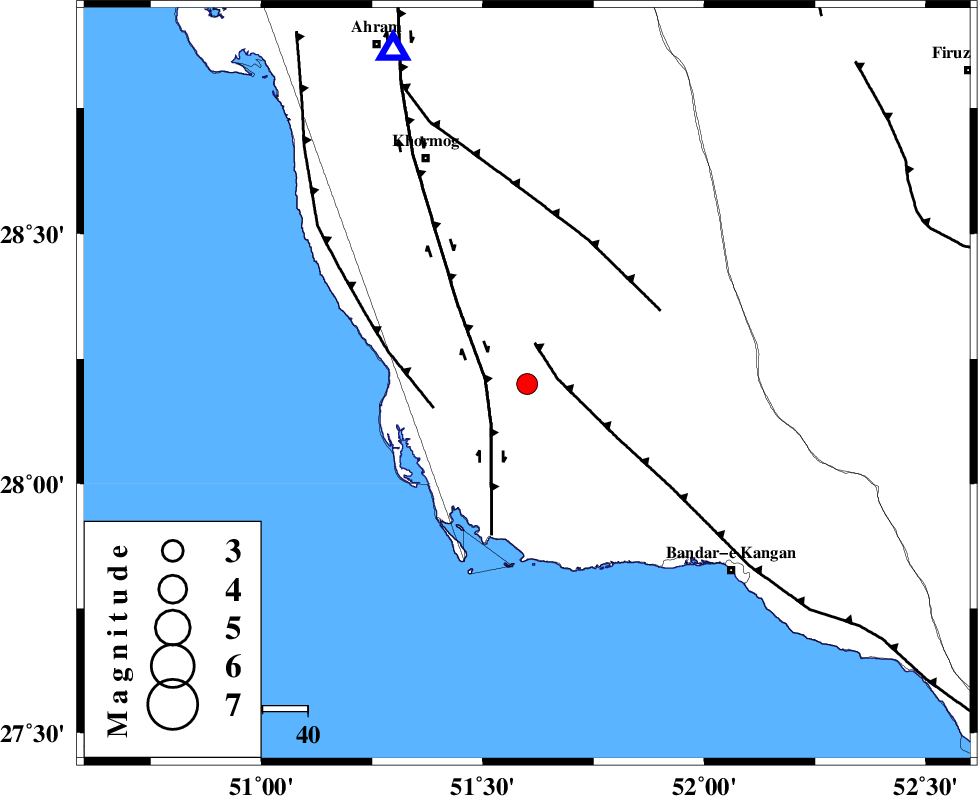

| Location | Lat:28.2 Lon: 51.6 |
| Region | Bushehr Province, 55 km South-East of Khormog |
Nearest Cities |
|
| 8 km North of Abkesh, Bushehr Province | |
| 17 km South of Kaki, Bushehr Province | |
| 20 km North East of Bardkhun, Bushehr Province | |
| 21 km North West of Abdan, Bushehr Province | |
| 23 km North East of Ziyarat, Bushehr Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 7 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 9 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 21 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88902 | IIEES | AHRM | E | 333 | 0.48 | 2013-04-22 17:48:59 | 2013-04-23 01:13:00 | n |
| 88903 | IIEES | AHRM | N | 539.5 | 0.44 | 2013-04-22 17:49:00 | 2013-04-23 01:13:00 | n |
| 88904 | IIEES | GHIR | N | 272.2 | 0.36 | 2013-04-22 17:49:20 | 2013-04-23 01:13:00 | n |
| 88905 | IIEES | GHIR | E | 261.7 | 0.36 | 2013-04-22 17:49:20 | 2013-04-23 01:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | E | Pg | E | 2013-04-22 17:48:42 | 0.15 | y | 79.5 | 338 | |||
| IIEES | AHRM | N | Sg | E | 2013-04-22 17:48:52 | -0.12 | y | 79.5 | 338 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-22 17:48:51 | -0.2 | y | 137 | 86 | |||
| IIEES | GHIR | E | Sg | E | 2013-04-22 17:49:08 | 0.08 | y | 137 | 86 | |||
| IIEES | YZKH | Z | Pn | E | 2013-04-22 17:49:44 | 0.17 | y | 547 | 31 | |||
