Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2013-05-02 22:43:38.5 |
| Date & Time (Local) | 1392/2/13 03:13:38.5 |

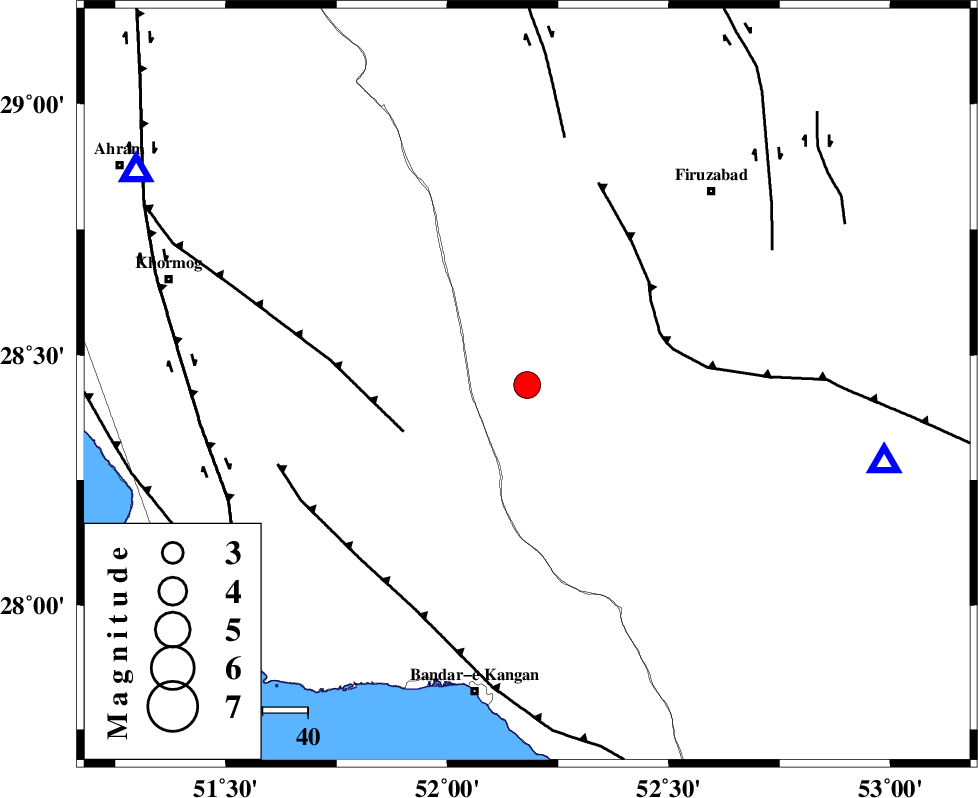

| Location | Lat:28.44 Lon: 52.18 |
| Region | Fars Province, 48 km South of Farashband |
Nearest Cities |
|
| 14 km West of Dahrom, Fars Province | |
| 34 km North West of Dolatabad, Fars Province | |
| 41 km North East of Shanbeh, Bushehr Province | |
| 45 km North East of Riz, Bushehr Province | |
| 47 km North West of Hengam, Fars Province | |
| Depth | 29 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 29 km | |
| QIR_F (Length: 130 km) , Distance to epicenter: 32 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 53 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >8.3 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89045 | IIEES | GHIR | N | 3046 | 0.36 | 2013-05-02 22:44:11 | 2013-05-03 12:10:00 | n |
| 89046 | IIEES | GHIR | E | 3678.9 | 0.36 | 2013-05-02 22:44:11 | 2013-05-03 12:10:00 | n |
| 89047 | IIEES | AHRM | N | 4414.6 | 0.56 | 2013-05-02 22:44:14 | 2013-05-03 12:10:00 | n |
| 89048 | IIEES | AHRM | E | 2988.5 | 0.48 | 2013-05-02 22:44:15 | 2013-05-03 12:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2013-05-02 22:43:52 | 0.13 | y | 81.4 | 102 | |||
| IIEES | GHIR | N | Sg | E | 2013-05-02 22:44:03 | -0.07 | y | 81.4 | 102 | |||
| IIEES | AHRM | Z | Pg | E | 2013-05-02 22:43:54 | -0.11 | y | 97.8 | 299 | |||
| IIEES | AHRM | E | Sg | E | 2013-05-02 22:44:07 | 0.06 | y | 97.8 | 299 | |||
| IIEES | YZKH | Z | Pn | E | 2013-05-02 22:44:46 | -0.02 | y | 495 | 27 | |||
| IIEES | YZKH | N | Sn | 2013-05-02 22:45:36 | 0.01 | y | 495 | 27 | ||||
