Event Specification
Magnitude |
5 |
| Date & Time (UTC) | 2013-05-06 02:28:04.1 |
| Date & Time (Local) | 1392/2/16 06:58:04.1 |

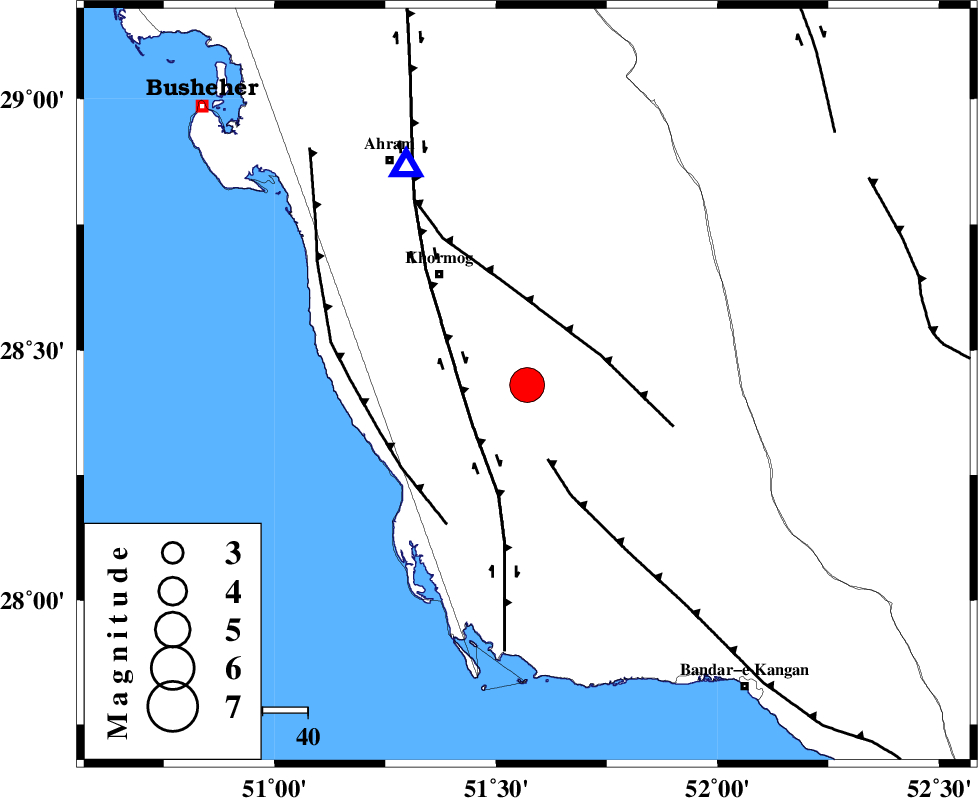

| Location | Lat:28.43 Lon: 51.57 |
| Region | Bushehr Province, 31 km South-East of Khormog |
Nearest Cities |
|
| 8 km North of Baduleh, Bushehr Province | |
| 12 km North of Kaki, Bushehr Province | |
| 19 km North West of Shanbeh, Bushehr Province | |
| 26 km South East of Buheyri, Bushehr Province | |
| 30 km North of Abkesh, Bushehr Province | |
| Depth | 28 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 15 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 17 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 18 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >6.5 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 2.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89102 | IIEES | GHIR | N | 29223.5 | 0.44 | 2013-05-06 02:28:47 | 2013-05-06 03:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-05-06 02:28:14 | -0.01 | y | 55.4 | 332 | |||
| IIEES | AHRM | Z | P | E | 2013-05-06 02:28:14 | 0 | y | 55.4 | 332 | |||
| IIEES | GHIR | Z | Pg | E | 2013-05-06 02:28:27 | 0 | y | 140 | 96 | |||
| IIEES | GHIR | N | Sg | E | 2013-05-06 02:28:44 | 0 | y | 140 | 96 | |||
| IIEES | YZKH | Z | Pn | E | 2013-05-06 02:29:16 | 0 | y | 527 | 33 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-05-06 02:29:26 | 0.01 | y | 609 | 346 | |||
| IIEES | ASAO | Z | Pn | E | 2013-05-06 02:29:36 | -0.02 | y | 694 | 348 | |||
