Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-05-21 18:07:19.0 |
| Date & Time (Local) | 1392/2/31 22:37:19.0 |

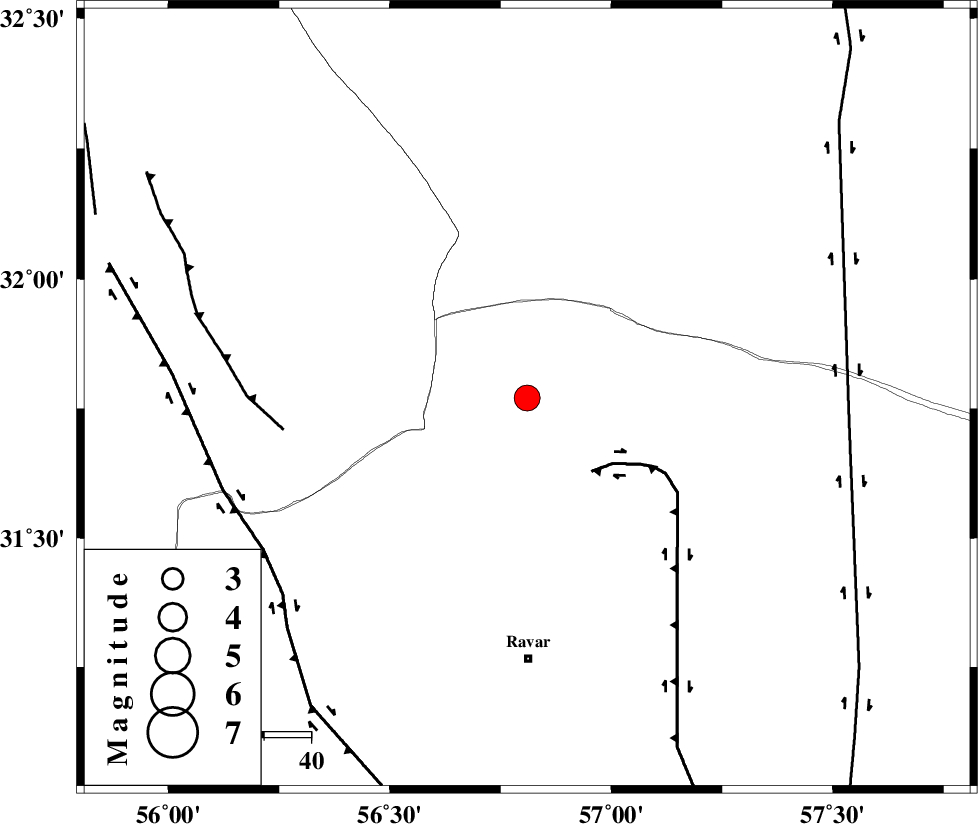

| Location | Lat:31.77 Lon: 56.81 |
| Region | Kerman Province, 56 km North of Ravar |
Nearest Cities |
|
| 50 km North of Dehali, Kerman Province | |
| 56 km North of Ravar, Kerman Province | |
| 56 km North East of Asfih, Yazd Province | |
| 63 km North East of Kuhbanan, Kerman Province | |
| 67 km North East of Jor, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 21 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 52 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 65 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89387 | IIEES | KRBR | N | 620.2 | 0.68 | 2013-05-21 18:08:20 | 2013-05-21 07:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2013-05-21 18:07:51 | 0.17 | y | 198 | 181 | |||
| IIEES | KRBR | N | Sg | E | 2013-05-21 18:08:15 | -0.2 | y | 198 | 181 | |||
| IIEES | TABS | Z | Pg | E | 2013-05-21 18:07:53 | -0.11 | y | 211 | 8 | |||
| IIEES | BSRN | Z | Pn | E | 2013-05-21 18:07:54 | 0.15 | y | 220 | 84 | |||
| IIEES | YZKH | Z | Pn | E | 2013-05-21 18:07:54 | 0.15 | y | 220 | 289 | |||
| IIEES | MRVT | Z | Pn | E | 2013-05-21 18:08:48 | -0.32 | y | 657 | 354 | |||
