Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-05-22 23:54:06.7 |
| Date & Time (Local) | 1392/3/2 04:24:06.7 |

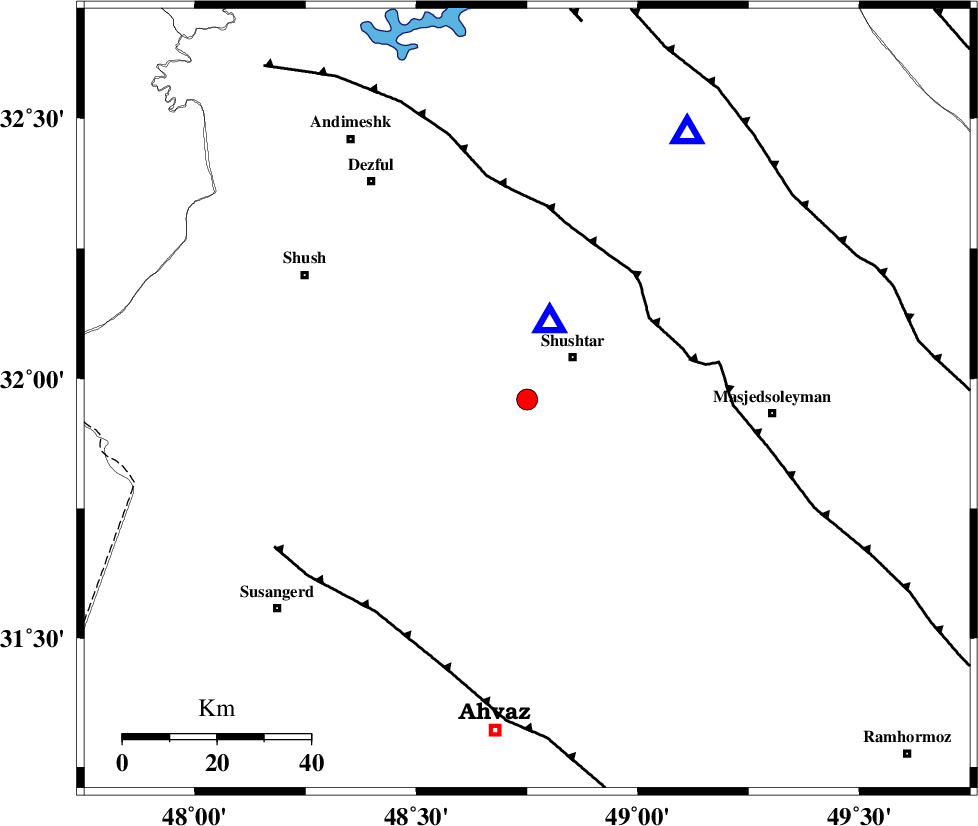

| Location | Lat:31.96 Lon: 48.75 |
| Region | Khoozestan Province, 14 km West of Shushtar |
Nearest Cities |
|
| 7 km of Sardarabad, Khoozestan Province | |
| 9 km North of Mehdiabad, Khoozestan Province | |
| 13 km West of Shushtar, Khoozestan Province | |
| 20 km North West of Arabhasan, Khoozestan Province | |
| 28 km South West of Samaleh, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 31 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 56 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 71 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 5 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89399 | IIEES | ASAO | E | 41.6 | 0.68 | 2013-05-22 23:55:49 | 2013-05-23 01:49:00 | n |
| 89400 | IIEES | NASN | N | 24.8 | 0.52 | 2013-05-22 23:56:06 | 2013-05-23 01:49:00 | n |
| 89401 | IIEES | NASN | E | 17.9 | 0.8 | 2013-05-22 23:56:08 | 2013-05-23 01:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2013-05-22 23:54:42 | 0.03 | y | 228 | 30 | |||
| IIEES | KHMZ | N | Sg | E | 2013-05-22 23:55:11 | 0.08 | y | 228 | 30 | |||
| IIEES | ASAO | Z | Pn | E | 2013-05-22 23:54:52 | 0.02 | y | 311 | 22 | |||
| IIEES | ASAO | E | Sg | E | 2013-05-22 23:55:34 | 0.01 | y | 311 | 22 | |||
| IIEES | GHVR | Z | Pn | E | 2013-05-22 23:54:59 | -0.19 | y | 364 | 39 | |||
| IIEES | GHVR | N | Sg | E | 2013-05-22 23:55:48 | -0.18 | y | 364 | 39 | |||
| IIEES | SNGE | Z | Pn | E | 2013-05-22 23:55:00 | -0.01 | y | 371 | 340 | |||
| IIEES | NASN | E | Sg | E | 2013-05-22 23:55:57 | 0.09 | y | 393 | 75 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-05-22 23:55:19 | 0.16 | y | 523 | 359 | |||
