Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2013-05-22 10:59:14.1 |
| Date & Time (Local) | 1392/3/1 15:29:14.1 |

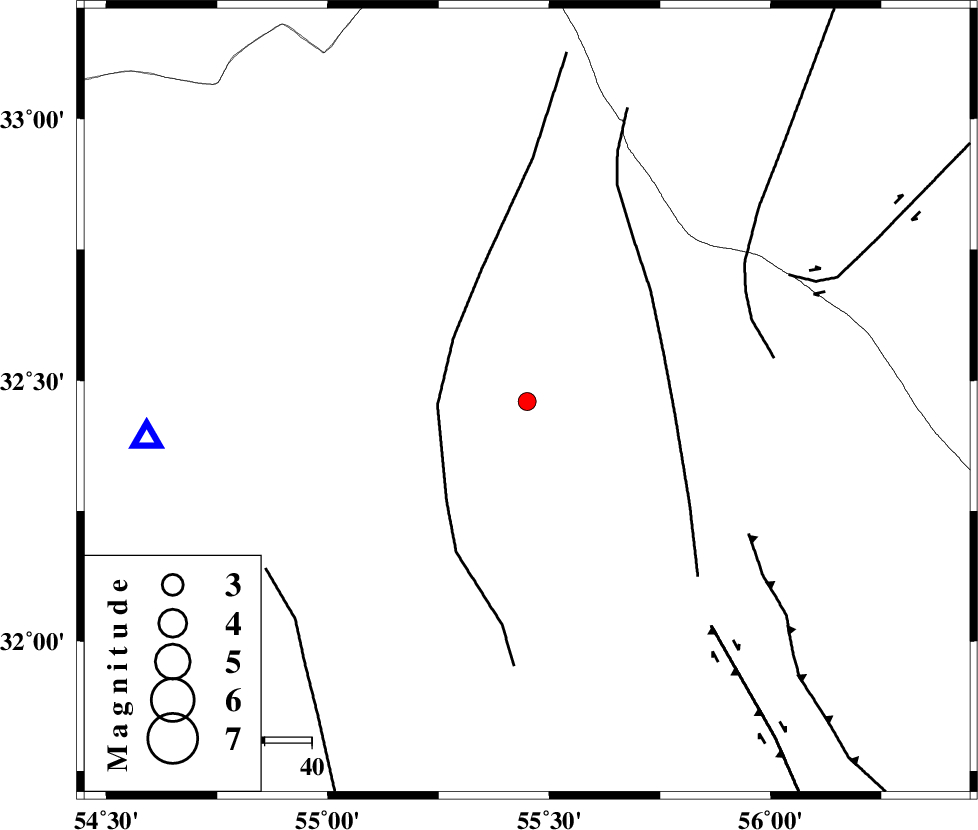

| Location | Lat:32.46 Lon: 55.45 |
| Region | Yazd Province, 95 km North of Bafq |
Nearest Cities |
|
| 63 km South West of Robat-e posht-e badam, Yazd Province | |
| 75 km North East of Kharaneq, Yazd Province | |
| 81 km South East of Zarrin, Yazd Province | |
| 85 km North West of Behabad, Yazd Province | |
| 86 km North West of Kushk, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 19 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 31 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 51 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89407 | IIEES | NASN | N | 27.4 | 0.31 | 2013-05-22 11:00:28 | 2013-05-23 05:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-05-22 10:59:28 | 0.22 | y | 81.2 | 265 | |||
| IIEES | YZKH | N | Sg | E | 2013-05-22 10:59:38 | -0.21 | y | 81.2 | 265 | |||
| IIEES | TABS | Z | Pn | E | 2013-05-22 10:59:47 | 0.07 | y | 204 | 49 | |||
| IIEES | NASN | Z | Pn | E | 2013-05-22 10:59:53 | 0.09 | y | 251 | 279 | |||
| IIEES | NASN | N | Sg | E | 2013-05-22 11:00:25 | -0.02 | y | 251 | 279 | |||
| IIEES | KRBR | Z | Pn | E | 2013-05-22 10:59:59 | 0.13 | y | 301 | 155 | |||
| IIEES | BSRN | Z | Pn | E | 2013-05-22 11:00:05 | -0.31 | y | 351 | 98 | |||
