Event Specification
Magnitude |
1.7 |
| Date & Time (UTC) | 2013-06-06 09:14:53.6 |
| Date & Time (Local) | 1392/3/16 13:44:53.6 |

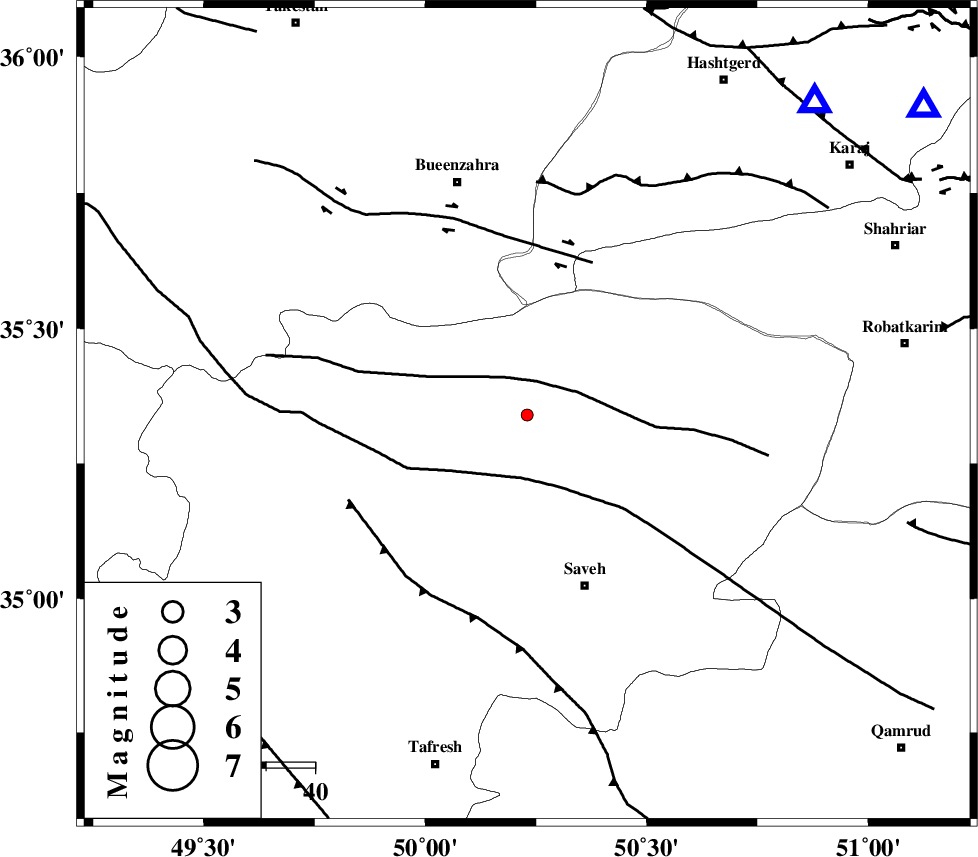

| Location | Lat:35.34 Lon: 50.23 |
| Region | Markazi Province, 37 km North-West of Saveh |
Nearest Cities |
|
| 11 km West of Khoshkrud, Markazi Province | |
| 25 km North East of Razegian, Markazi Province | |
| 26 km West of Hakimabad, Markazi Province | |
| 27 km North West of Memunieh, Markazi Province | |
| 30 km West of Zaviyeh, Markazi Province | |
| Depth | 23 km |
| Agency | |
Faults within 150 km: |
|
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 7 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 13 km | |
| IPAK_F (Length: 80 km) , Distance to epicenter: 34 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89562 | IIEES | GHVR | E | 23.1 | 0.24 | 2013-06-06 09:15:41 | 2013-06-06 04:18:00 | n |
| 89563 | IIEES | GHVR | N | 8.5 | 0.28 | 2013-06-06 09:15:43 | 2013-06-06 04:18:00 | n |
| 89564 | IIEES | DAMV | E | 12.2 | 0.24 | 2013-06-06 09:15:47 | 2013-06-06 04:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2013-06-06 09:15:08 | -0.13 | y | 89.5 | 192 | |||
| IIEES | CHTH | Z | Pg | E | 2013-06-06 09:15:11 | 0.13 | y | 103 | 52 | |||
| IIEES | GHVR | Z | Pn | E | 2013-06-06 09:15:16 | -0.14 | y | 133 | 135 | |||
| IIEES | DAMV | Z | Pn | E | 2013-06-06 09:15:20 | -0.08 | y | 162 | 78 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-06-06 09:15:23 | 0.29 | y | 179 | 188 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-06-06 09:15:25 | -0.08 | y | 203 | 317 | |||
