Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-06-06 16:56:11.8 |
| Date & Time (Local) | 1392/3/16 21:26:11.8 |

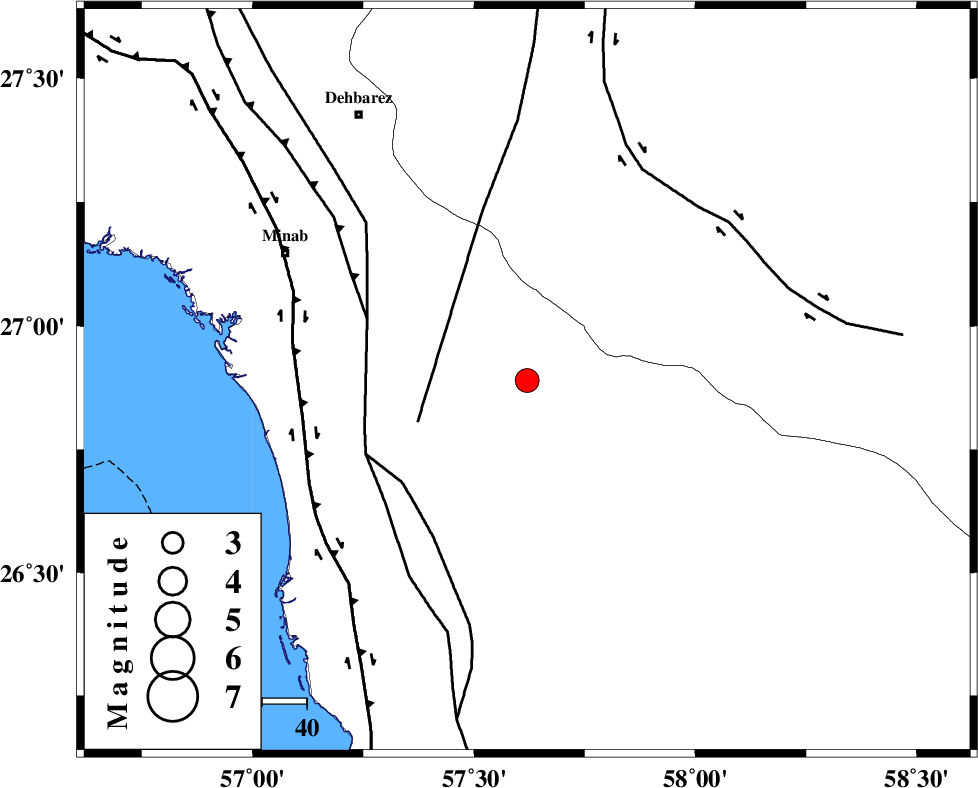

| Location | Lat:26.89 Lon: 57.62 |
| Region | Hormozgan Province, 59 km South-East of Manujan |
Nearest Cities |
|
| 20 km North East of Sanadrak, Hormozgan Province | |
| 27 km North of Darpahn, Hormozgan Province | |
| 38 km South West of Keshmiran, Kerman Province | |
| 41 km East of Koryan, Hormozgan Province | |
| 43 km North West of Angahran, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 26 km | |
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 36 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 36 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 2 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89568 | IIEES | KRBR | N | 101.5 | 0.52 | 2013-06-06 16:58:09 | 2013-06-06 07:02:00 | n |
| 89569 | IIEES | KRBR | E | 107.1 | 0.64 | 2013-06-06 16:58:11 | 2013-06-06 07:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | P | E | 2013-06-06 16:56:37 | -0.03 | y | 154 | 292 | |||
| IIEES | CHBR | Z | P | E | 2013-06-06 16:56:59 | -0.04 | y | 320 | 116 | |||
| IIEES | ZHSF | Z | P | E | 2013-06-06 16:57:13 | 0.16 | y | 432 | 45 | |||
| IIEES | ZHSF | N | Sg | E | 2013-06-06 16:58:12 | -0.07 | y | 432 | 45 | |||
