Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2013-06-06 18:47:54.2 |
| Date & Time (Local) | 1392/3/16 23:17:54.2 |

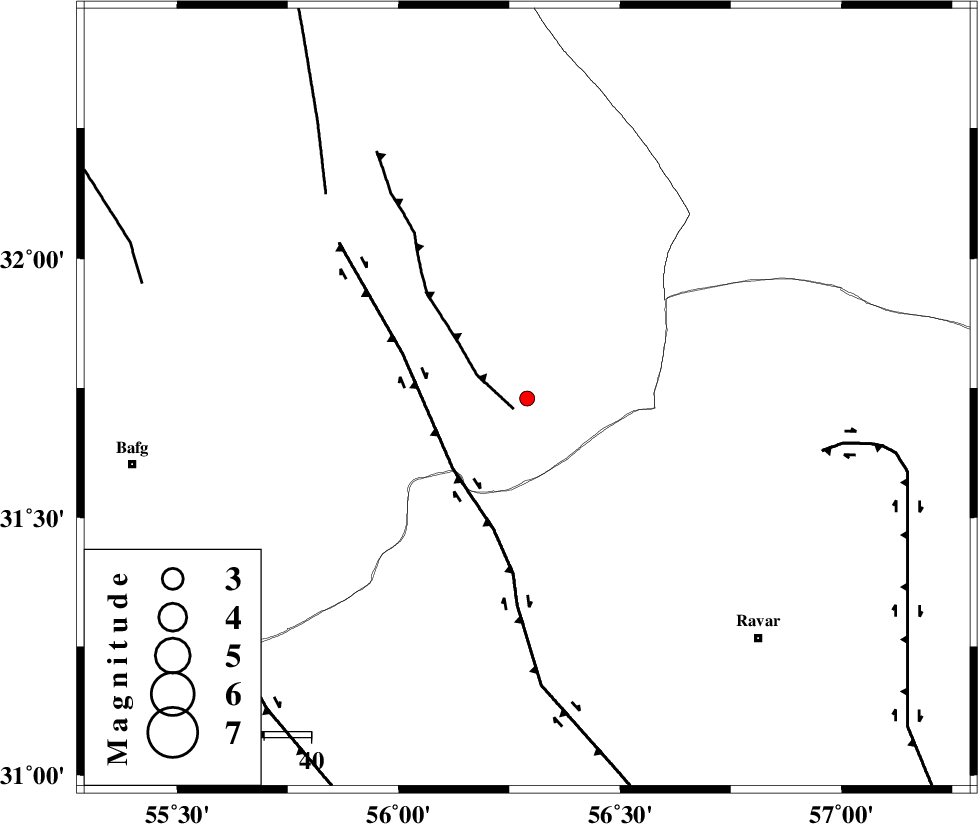

| Location | Lat:31.73 Lon: 56.29 |
| Region | Yazd Province, 71 km North-West of Ravar |
Nearest Cities |
|
| 9 km North of Asfih, Yazd Province | |
| 20 km East of Benestan, Yazd Province | |
| 29 km South East of Behabad, Yazd Province | |
| 35 km North of Kuhbanan, Kerman Province | |
| 40 km North East of Basab, Yazd Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 4 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 22 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 61 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89570 | IIEES | KRBR | E | 17.3 | 0.28 | 2013-06-06 18:48:58 | 2013-06-06 08:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-06-06 18:48:23 | 0.01 | y | 177 | 295 | |||
| IIEES | YZKH | E | Sg | E | 2013-06-06 18:48:44 | -0.1 | y | 177 | 295 | |||
| IIEES | KRBR | Z | Pn | E | 2013-06-06 18:48:26 | 0 | y | 198 | 167 | |||
| IIEES | KRBR | N | Sg | E | 2013-06-06 18:48:50 | 0.09 | y | 198 | 167 | |||
| IIEES | TABS | Z | Pn | E | 2013-06-06 18:48:30 | 0.35 | y | 227 | 20 | |||
| IIEES | BSRN | Z | Pn | E | 2013-06-06 18:48:34 | -0.36 | y | 269 | 84 | |||
