Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-07-09 01:26:32.9 |
| Date & Time (Local) | 1392/4/18 05:56:32.9 |

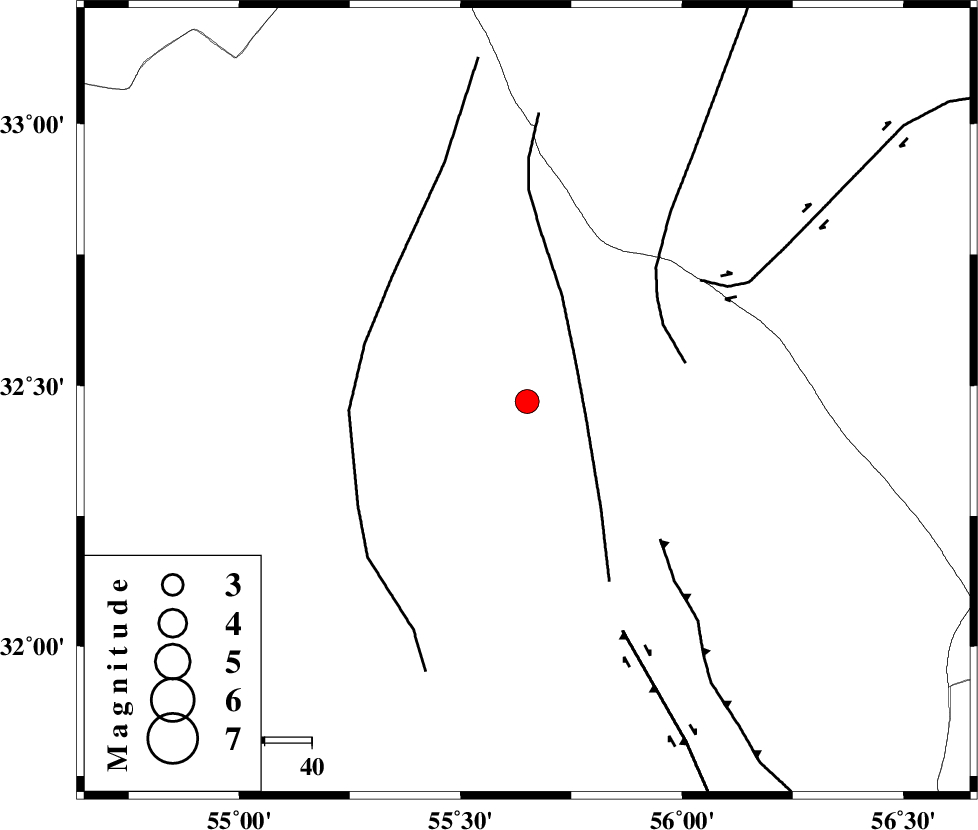

| Location | Lat:32.47 Lon: 55.65 |
| Region | Yazd Province, 100 km North-East of Bafq |
Nearest Cities |
|
| 62 km South of Robat-e posht-e badam, Yazd Province | |
| 76 km North West of Behabad, Yazd Province | |
| 82 km North West of Kushk, Yazd Province | |
| 91 km North West of Benestan, Yazd Province | |
| 94 km North East of Kharaneq, Yazd Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SARBALA_F (Length: 92 km) , Distance to epicenter: 13 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 33 km | |
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 37 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89849 | IIEES | KRBR | E | 139 | 0.32 | 2013-07-09 01:28:03 | 2013-07-09 02:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-07-09 01:26:49 | -0.05 | y | 99.6 | 265 | |||
| IIEES | TABS | Z | Pn | E | 2013-07-09 01:27:04 | -0.04 | y | 190 | 46 | |||
| IIEES | TABS | N | Sg | E | 2013-07-09 01:27:27 | 0.1 | y | 190 | 46 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-09 01:27:17 | 0.33 | y | 296 | 159 | |||
| IIEES | KRBR | N | Sg | E | 2013-07-09 01:27:56 | -0.06 | y | 296 | 159 | |||
| IIEES | BSRN | Z | Pn | E | 2013-07-09 01:27:21 | -0.3 | y | 333 | 99 | |||
