Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2013-07-16 06:49:57.3 |
| Date & Time (Local) | 1392/4/25 11:19:57.3 |

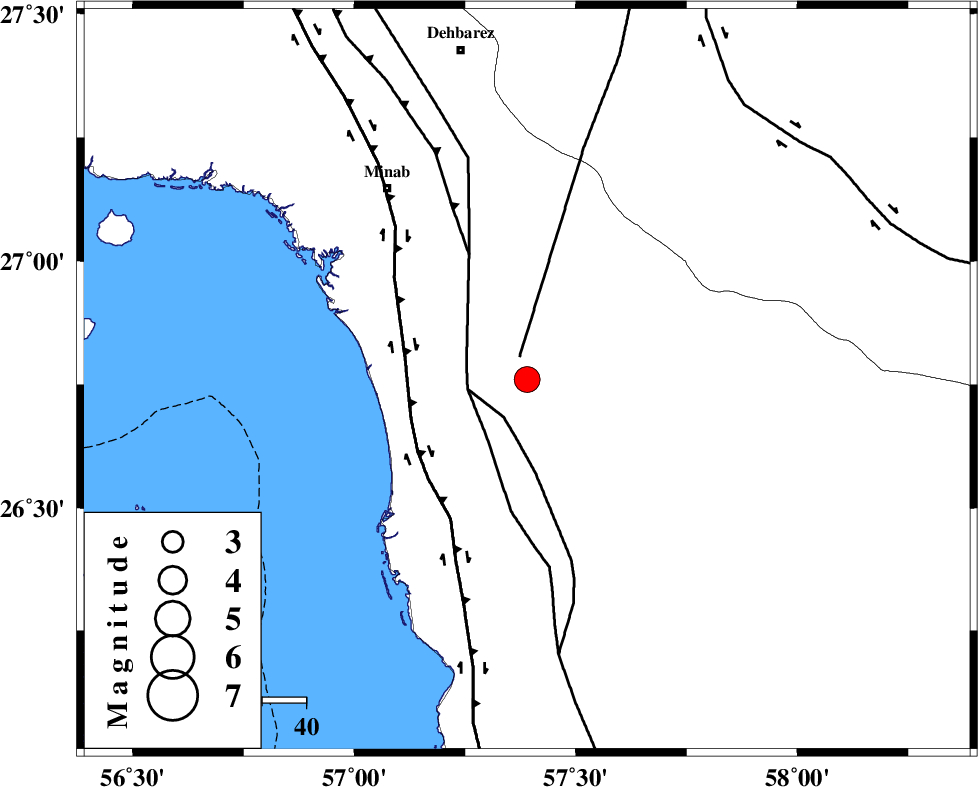

| Location | Lat:26.76 Lon: 57.39 |
| Region | Hormozgan Province, 53 km South-East of Minab |
Nearest Cities |
|
| 9 km of Sanadrak, Hormozgan Province | |
| 22 km North West of Darpahn, Hormozgan Province | |
| 28 km South East of Koryan, Hormozgan Province | |
| 40 km North East of Bandar-e sirk, Hormozgan Province | |
| 47 km North East of Gonmardi, Hormozgan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 5 km | |
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 10 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 13 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | >5.1 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89904 | IIEES | BNDS | N | 1205 | 0.36 | 2013-07-16 06:50:51 | 2013-07-16 08:44:00 | n |
| 89905 | IIEES | BNDS | E | 1025.1 | 0.56 | 2013-07-16 06:50:55 | 2013-07-16 08:44:00 | n |
| 89906 | IIEES | KRBR | E | 204.5 | 0.58 | 2013-07-16 06:51:57 | 2013-07-16 08:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-07-16 06:50:21 | 0.39 | y | 140 | 301 | |||
| IIEES | CHBR | Z | Pn | E | 2013-07-16 06:50:46 | 0.28 | y | 335 | 112 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-16 06:50:50 | 0.14 | y | 362 | 350 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-07-16 06:51:01 | -0.23 | y | 459 | 46 | |||
| IIEES | GHIR | Z | Pn | E | 2013-07-16 06:51:01 | -0.75 | y | 467 | 292 | |||
| IIEES | BSRN | Z | Pn | E | 2013-07-16 06:51:19 | -0.07 | y | 601 | 16 | |||
| IIEES | BSRN | E | Sg | E | 2013-07-16 06:52:44 | -0.04 | y | 601 | 16 | |||
