Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-07-20 10:21:42.8 |
| Date & Time (Local) | 1392/4/29 14:51:42.8 |

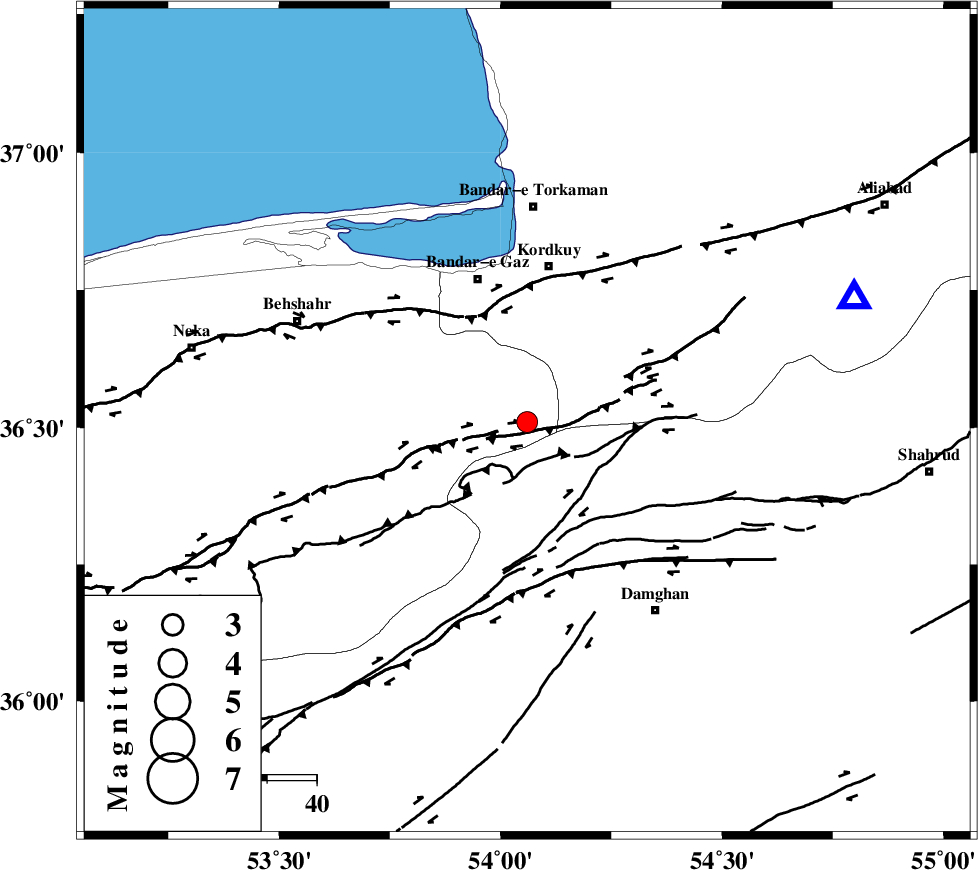

| Location | Lat:36.51 Lon: 54.06 |
| Region | Mazandaran Province, 32 km South of Kordkuy |
Nearest Cities |
|
| 19 km East of Sefid chah, Mazandaran Province | |
| 22 km East of Bishehboneh, Mazandaran Province | |
| 25 km South of Sarkalateh, Golestan Province | |
| 27 km South East of Nokandeh, Golestan Province | |
| 28 km South East of Gaz-e gharbi, Golestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 3 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 23 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 25 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >6 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89941 | IIEES | DAMV | E | 115.9 | 0.21 | 2013-07-20 10:22:51 | 2013-07-20 12:26:00 | n |
| 89942 | IIEES | MRVT | N | 86 | 0.55 | 2013-07-20 10:22:51 | 2013-07-20 12:26:00 | n |
| 89943 | IIEES | MRVT | E | 116.5 | 0.37 | 2013-07-20 10:22:54 | 2013-07-20 12:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pn | E | 2013-07-20 10:22:16 | 0.03 | y | 212 | 243 | |||
| IIEES | MRVT | Z | Pn | E | 2013-07-20 10:22:17 | 0.05 | y | 221 | 54 | |||
| IIEES | CHTH | Z | Pn | E | 2013-07-20 10:22:24 | 0.17 | y | 272 | 257 | |||
| IIEES | CHTH | N | Sg | E | 2013-07-20 10:23:00 | 0.35 | y | 272 | 257 | |||
| IIEES | THKV | Z | Pn | E | 2013-07-20 10:22:26 | -0.42 | y | 293 | 258 | |||
| IIEES | THKV | N | Sg | E | 2013-07-20 10:23:05 | -0.36 | y | 293 | 258 | |||
| IIEES | GHVR | Z | Pn | E | 2013-07-20 10:22:32 | 0.34 | y | 340 | 229 | |||
| IIEES | YZKH | Z | Pn | E | 2013-07-20 10:22:47 | -0.2 | y | 459 | 174 | |||
