Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2013-07-31 10:02:00.3 |
| Date & Time (Local) | 1392/5/9 14:32:00.3 |

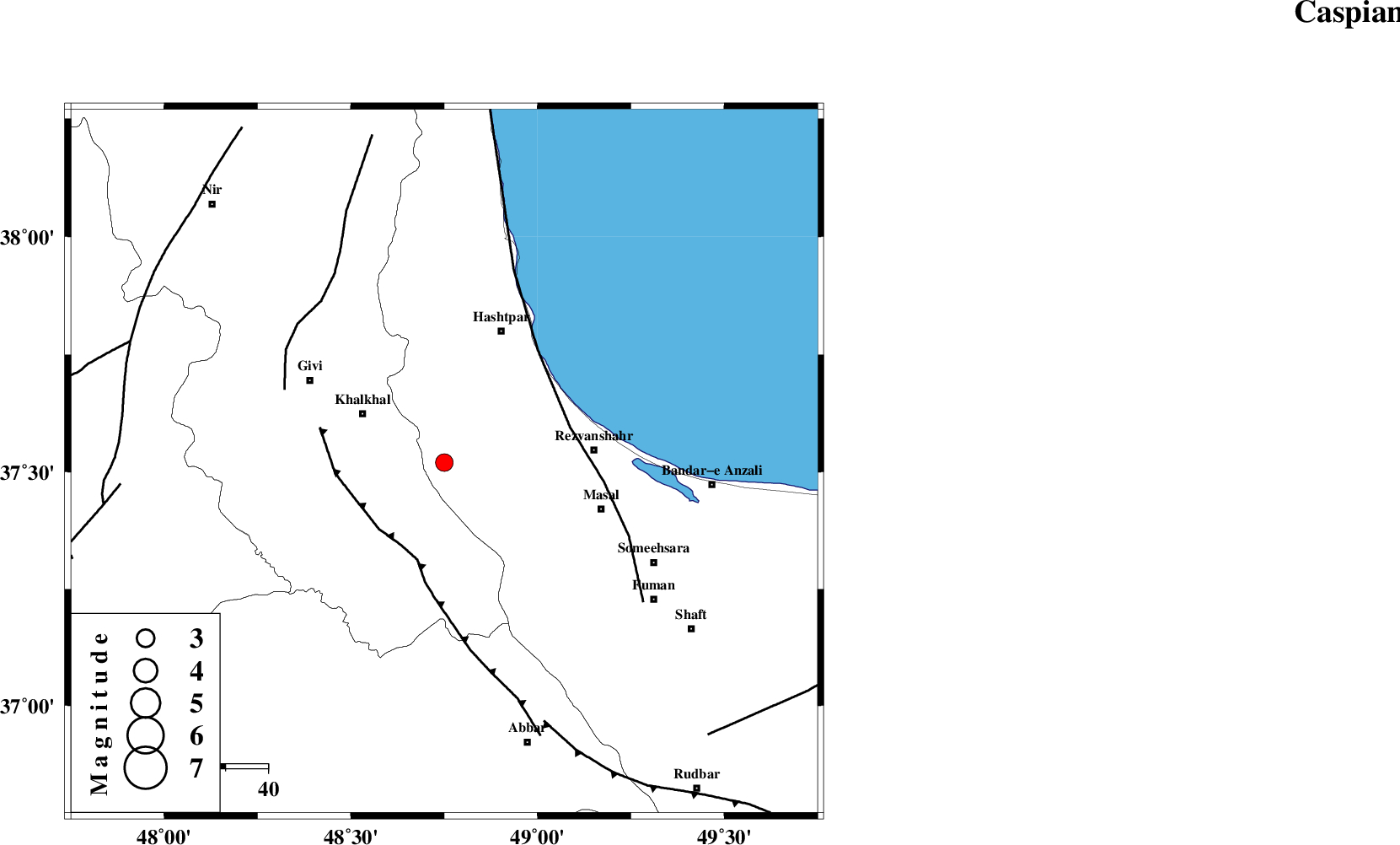

| Location | Lat:37.52 Lon: 48.75 |
| Region | Gilan Province, 22 km South-East of Khalkhal |
Nearest Cities |
|
| 12 km West of Ardeh, Gilan Province | |
| 15 km North of Kalur, Ardebil Province | |
| 19 km East of Khojin, Ardebil Province | |
| 21 km North of Shal, Ardebil Province | |
| 23 km South East of Khalkhal, Ardebil Province | |
| Depth | 29 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 22 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 31 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 42 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >0.9 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 2.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90065 | IIEES | THKV | N | 80 | 0.52 | 2013-07-31 10:03:13 | 2013-07-31 12:51:00 | n |
| 90066 | IIEES | THKV | E | 80 | 0.44 | 2013-07-31 10:03:13 | 2013-07-31 12:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2013-07-31 10:02:16 | 0.09 | y | 94.5 | 183 | |||
| IIEES | ZNJK | E | Sg | E | 2013-07-31 10:02:28 | -0.06 | y | 94.5 | 183 | |||
| IIEES | GRMI | Z | Pg | E | 2013-07-31 10:02:26 | -0.09 | y | 161 | 333 | |||
| IIEES | GRMI | N | Sg | E | 2013-07-31 10:02:45 | 0.05 | y | 161 | 333 | |||
| IIEES | THKV | Z | Pn | E | 2013-07-31 10:02:39 | -0.02 | y | 261 | 132 | |||
| IIEES | THKV | N | Sg | E | 2013-07-31 10:03:12 | 0.01 | y | 261 | 132 | |||
| IIEES | SNGE | Z | Pn | E | 2013-07-31 10:02:43 | 0.02 | y | 297 | 205 | |||
