Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2013-08-02 20:48:06.7 |
| Date & Time (Local) | 1392/5/12 01:18:06.7 |

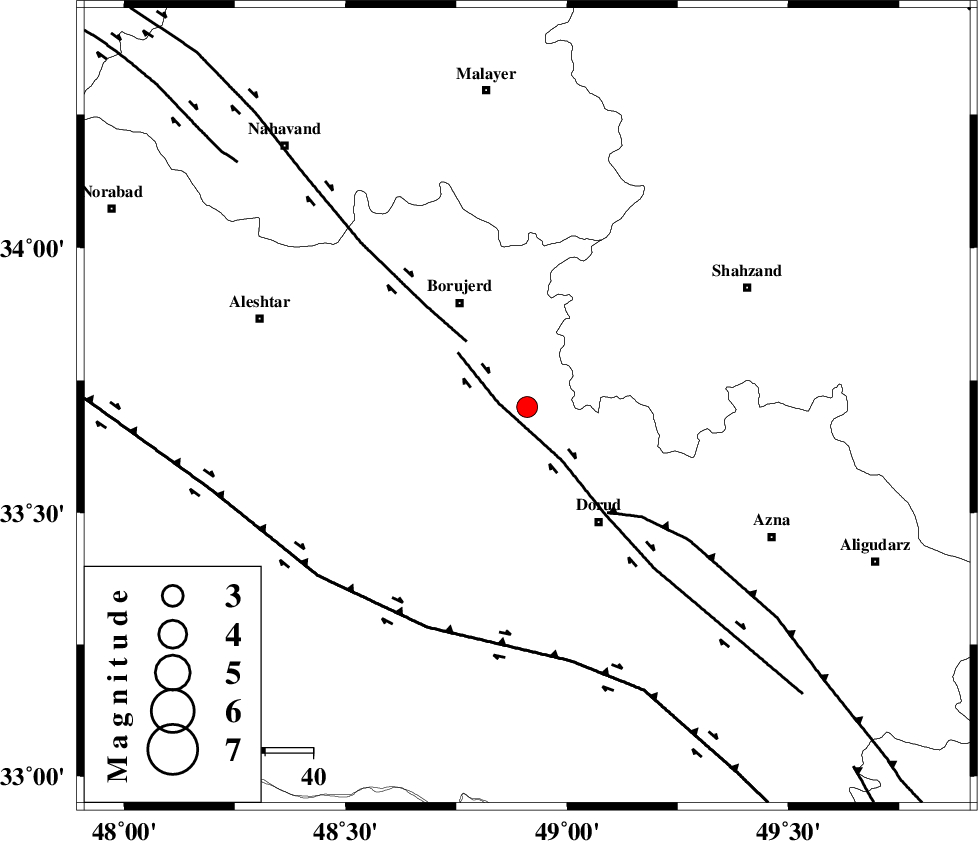

| Location | Lat:33.7 Lon: 48.91 |
| Region | Lorestan Province, 26 km South-East of Borujerd |
Nearest Cities |
|
| 5 km North of Chalanchulan, Lorestan Province | |
| 11 km North of Kagheh, Lorestan Province | |
| 15 km North of Razan, Lorestan Province | |
| 17 km West of Hashian, Markazi Province | |
| 18 km South East of Hemmatabad, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 6 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 19 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 28 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >2 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90088 | IIEES | ASAO | E | 303.7 | 0.48 | 2013-08-02 20:48:53 | 2013-08-02 10:09:00 | n |
| 90089 | IIEES | GHVR | E | 102 | 0.48 | 2013-08-02 20:49:19 | 2013-08-02 10:09:00 | n |
| 90090 | IIEES | THKV | E | 44.7 | 0.6 | 2013-08-02 20:49:33 | 2013-08-02 10:09:00 | n |
| 90091 | IIEES | THKV | N | 45.7 | 0.56 | 2013-08-02 20:49:42 | 2013-08-02 10:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2013-08-02 20:48:23 | -0.02 | y | 97.7 | 87 | |||
| IIEES | KHMZ | N | Sg | E | 2013-08-02 20:48:35 | 0.01 | y | 97.7 | 87 | |||
| IIEES | ASAO | Z | Pg | E | 2013-08-02 20:48:30 | 0.02 | y | 139 | 47 | |||
| IIEES | ASAO | E | Sg | E | 2013-08-02 20:48:47 | -0.01 | y | 139 | 47 | |||
| IIEES | SNGE | Z | Pn | E | 2013-08-02 20:48:40 | -0.01 | y | 211 | 317 | |||
| IIEES | THKV | Z | Pn | E | 2013-08-02 20:48:52 | 0.02 | y | 304 | 36 | |||
