Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2013-08-06 00:08:20.0 |
| Date & Time (Local) | 1392/5/15 04:38:20.0 |

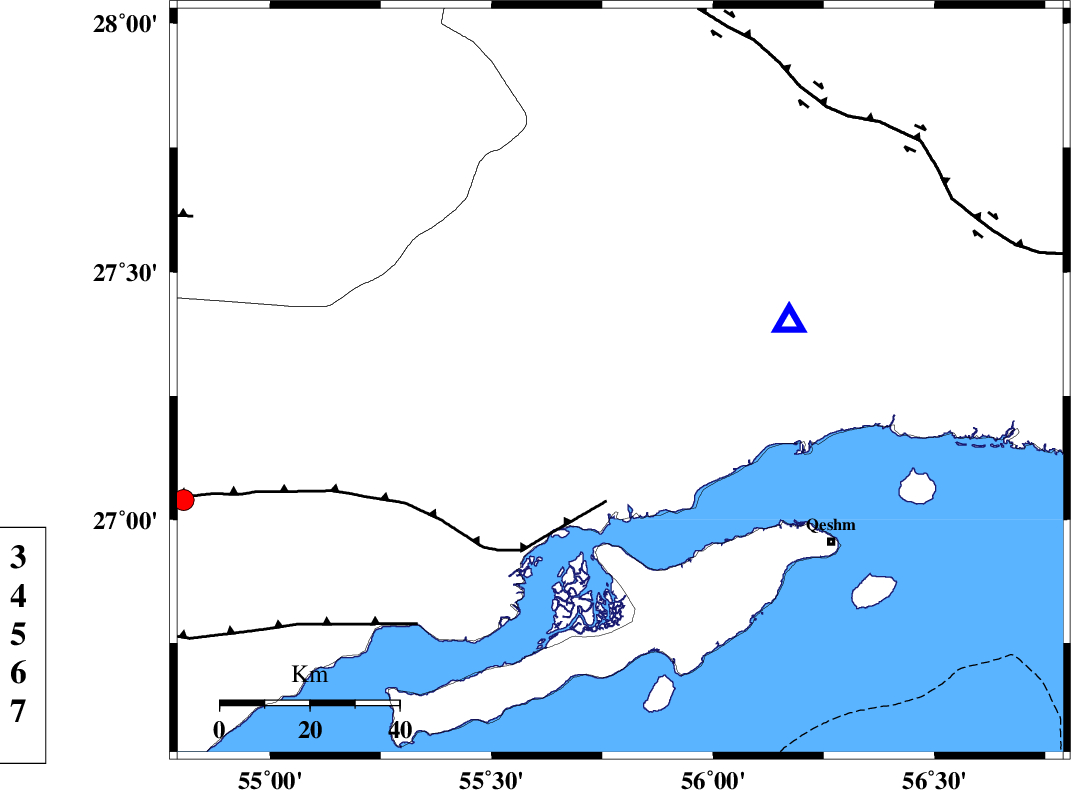

| Location | Lat:27.28 Lon: 55.79 |
| Region | Hormozgan Province, 50 km West of Bandar-e abbas |
Nearest Cities |
|
| 41 km South West of Fin, Hormozgan Province | |
| 42 km North East of Bandar-e khamir, Hormozgan Province | |
| 50 km North West of Bandar-e abbas, Hormozgan Province | |
| 59 km North West of Qeshm, Hormozgan Province | |
| 62 km North West of Suza, Hormozgan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 27 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 71 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 77 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90132 | IIEES | GHIR | Z | 53 | 0.8 | 2013-08-06 00:10:03 | 2013-08-06 03:43:00 | n |
| 90133 | IIEES | GHIR | E | 69 | 0.6 | 2013-08-06 00:10:08 | 2013-08-06 03:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-08-06 00:08:27 | 0 | y | 40 | 70 | |||
| IIEES | GHIR | Z | Pn | E | 2013-08-06 00:09:04 | 0.13 | y | 298 | 293 | |||
| IIEES | KRBR | Z | Pn | E | 2013-08-06 00:09:06 | -0.22 | y | 314 | 17 | |||
| IIEES | KRBR | E | Sg | E | 2013-08-06 00:09:48 | 0.08 | y | 314 | 17 | |||
