Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2013-08-09 23:30:48.7 |
| Date & Time (Local) | 1392/5/19 04:00:48.7 |

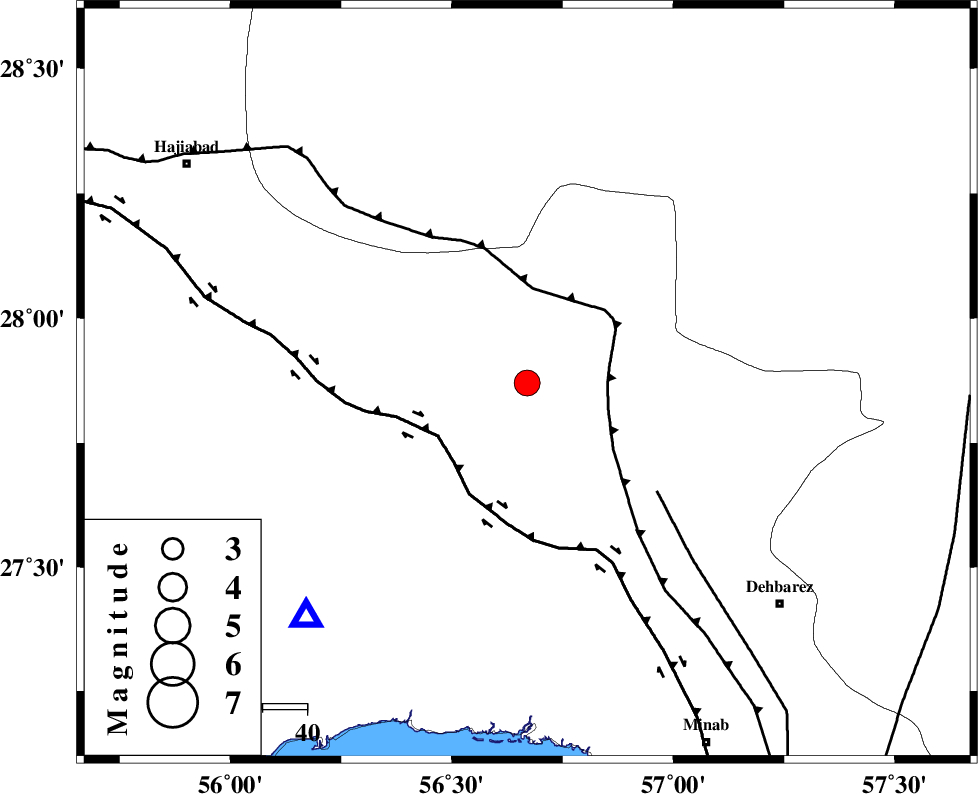

| Location | Lat:27.87 Lon: 56.67 |
| Region | Hormozgan Province, 74 km North-West of Dehbarez |
Nearest Cities |
|
| 46 km South East of Fareqan, Hormozgan Province | |
| 56 km South West of Sarkhan, Kerman Province | |
| 57 km North West of Ziaratali, Hormozgan Province | |
| 60 km North West of Fariab, Hormozgan Province | |
| 63 km South West of Faryab, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 18 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 23 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 38 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90178 | IIEES | KRBR | E | 482.9 | 0.32 | 2013-08-09 23:31:56 | 2013-08-10 01:27:00 | n |
| 90179 | IIEES | KRBR | N | 642.1 | 0.48 | 2013-08-09 23:31:59 | 2013-08-10 01:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-08-09 23:31:01 | 0 | y | 71.8 | 224 | |||
| IIEES | KRBR | Z | Pn | E | 2013-08-09 23:31:25 | 0.07 | y | 234 | 2 | |||
| IIEES | KRBR | N | Sg | E | 2013-08-09 23:31:55 | -0.03 | y | 234 | 2 | |||
| IIEES | CHBR | Z | Pn | E | 2013-08-09 23:31:52 | -0.05 | y | 455 | 123 | |||
