Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2013-08-15 20:08:41.7 |
| Date & Time (Local) | 1392/5/25 00:38:41.7 |

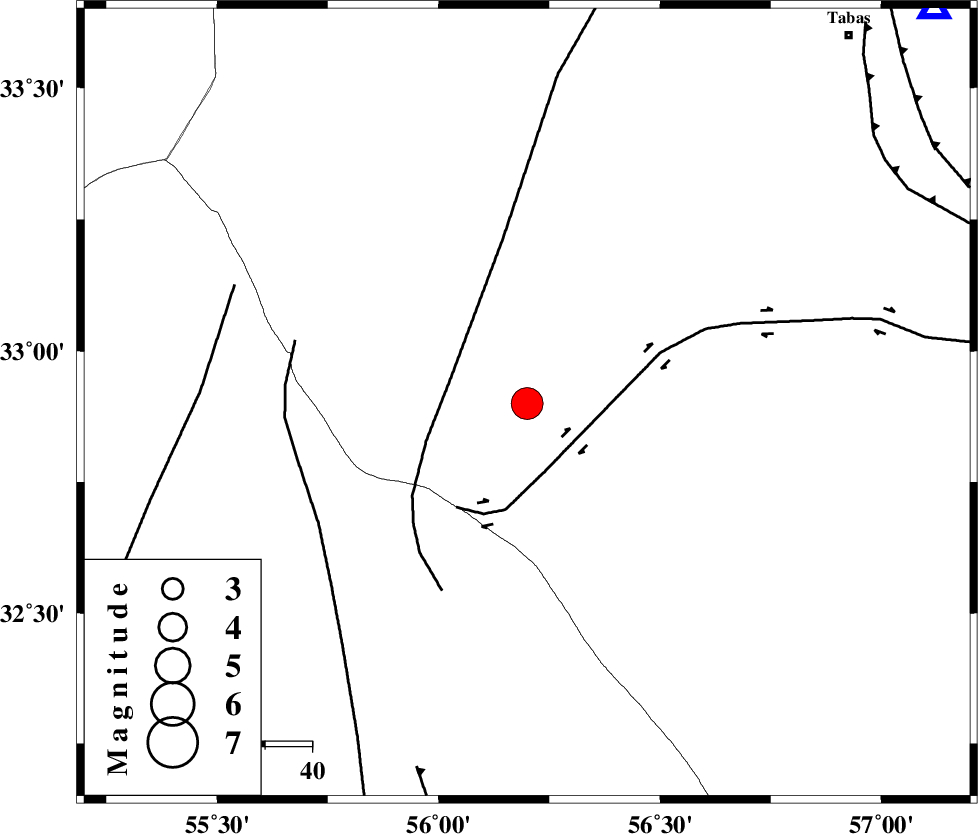

| Location | Lat:32.9 Lon: 56.2 |
| Region | Yazd Province, 103 km South-West of Tabas |
Nearest Cities |
|
| 61 km South East of Robat-e posht-e badam, Yazd Province | |
| 86 km South East of Darin, Yazd Province | |
| 91 km South West of Kerit, Yazd Province | |
| 98 km South West of Oshtoqran, Yazd Province | |
| 103 km South West of Tabas, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 15 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 17 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 50 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90239 | IIEES | YZKH | N | 6908.5 | 0.4 | 2013-08-15 20:09:31 | 2013-08-17 02:33:00 | n |
| 90240 | IIEES | YZKH | E | 6071.5 | 0.6 | 2013-08-15 20:09:32 | 2013-08-17 02:33:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-08-15 20:09:08 | -0.12 | y | 161 | 250 | |||
| IIEES | YZKH | N | Sg | E | 2013-08-15 20:09:28 | 0.09 | y | 161 | 250 | |||
| IIEES | NASN | Z | Pn | E | 2013-08-15 20:09:29 | 0.06 | y | 318 | 269 | |||
| IIEES | NASN | N | Sg | E | 2013-08-15 20:10:11 | -0.02 | y | 318 | 269 | |||
| IIEES | SHRT | Z | Pn | E | 2013-08-15 20:09:37 | 0 | y | 390 | 77 | |||
