Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-08-24 20:58:29.5 |
| Date & Time (Local) | 1392/6/3 01:28:29.5 |

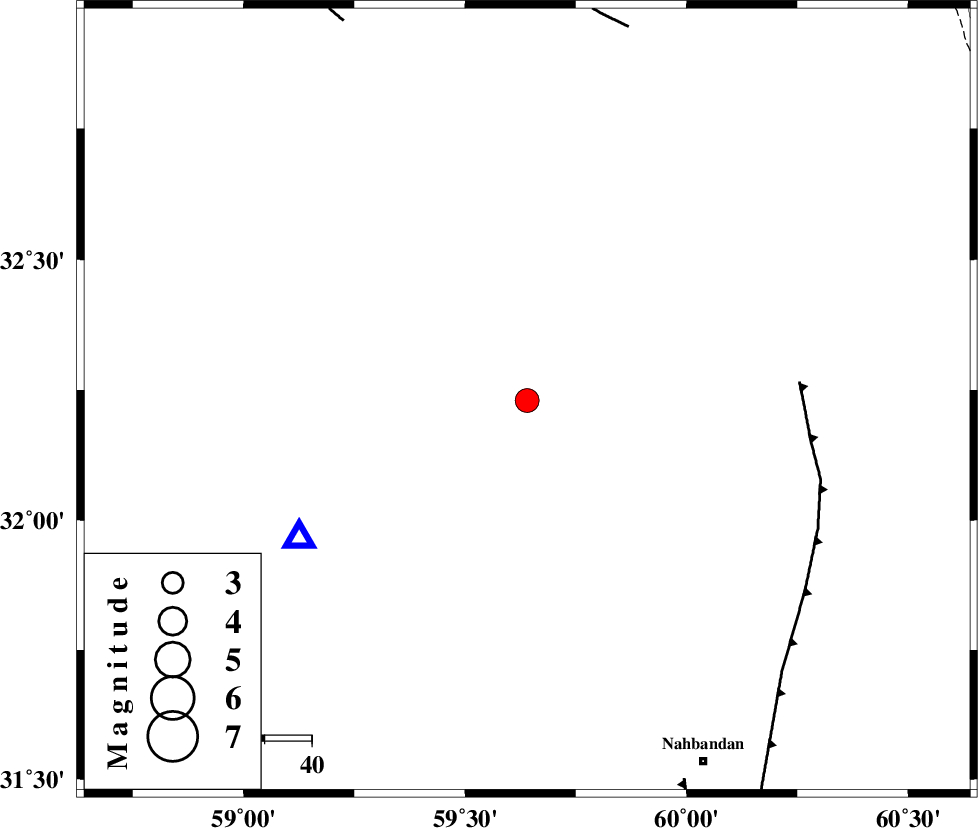

| Location | Lat:32.23 Lon: 59.64 |
| Region | Khorasan(south) Province, 46 km South-West of Sarbisheh |
Nearest Cities |
|
| 36 km South East of Mokhtaran, Khorasan(south) Province | |
| 37 km South East of Kalateh soleyman, Khorasan(south) Province | |
| 39 km North West of Shusef, Khorasan(south) Province | |
| 41 km South West of Salmabad, Khorasan(south) Province | |
| 46 km South West of Sarbisheh, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| E_NEH_F (Length: 148 km) , Distance to epicenter: 58 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 82 km | |
| W_NEH_F (Length: 158 km) , Distance to epicenter: 88 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90327 | IIEES | SHRT | E | 417.9 | 0.48 | 2013-08-24 20:59:22 | 2013-08-24 10:44:00 | n |
| 90328 | IIEES | SHRT | N | 498.7 | 0.64 | 2013-08-24 20:59:23 | 2013-08-24 10:44:00 | n |
| 90329 | IIEES | YZKH | E | 53.6 | 0.64 | 2013-08-24 21:00:52 | 2013-08-24 10:44:00 | n |
| 90330 | IIEES | YZKH | N | 42.1 | 0.48 | 2013-08-24 21:00:52 | 2013-08-24 10:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2013-08-24 20:58:39 | -0.06 | y | 56.9 | 239 | |||
| IIEES | SHRT | Z | Pg | E | 2013-08-24 20:58:57 | 0.01 | y | 168 | 21 | |||
| IIEES | TABS | Z | Pn | E | 2013-08-24 20:59:12 | -0.05 | y | 284 | 304 | |||
| IIEES | KRBR | Z | Pn | E | 2013-08-24 20:59:23 | 0.05 | y | 371 | 229 | |||
| IIEES | YZKH | Z | Pn | E | 2013-08-24 20:59:36 | 0.08 | y | 476 | 273 | |||
