Event Specification
Magnitude |
1.4 |
| Date & Time (UTC) | 2013-08-26 21:34:30.6 |
| Date & Time (Local) | 1392/6/5 02:04:30.6 |

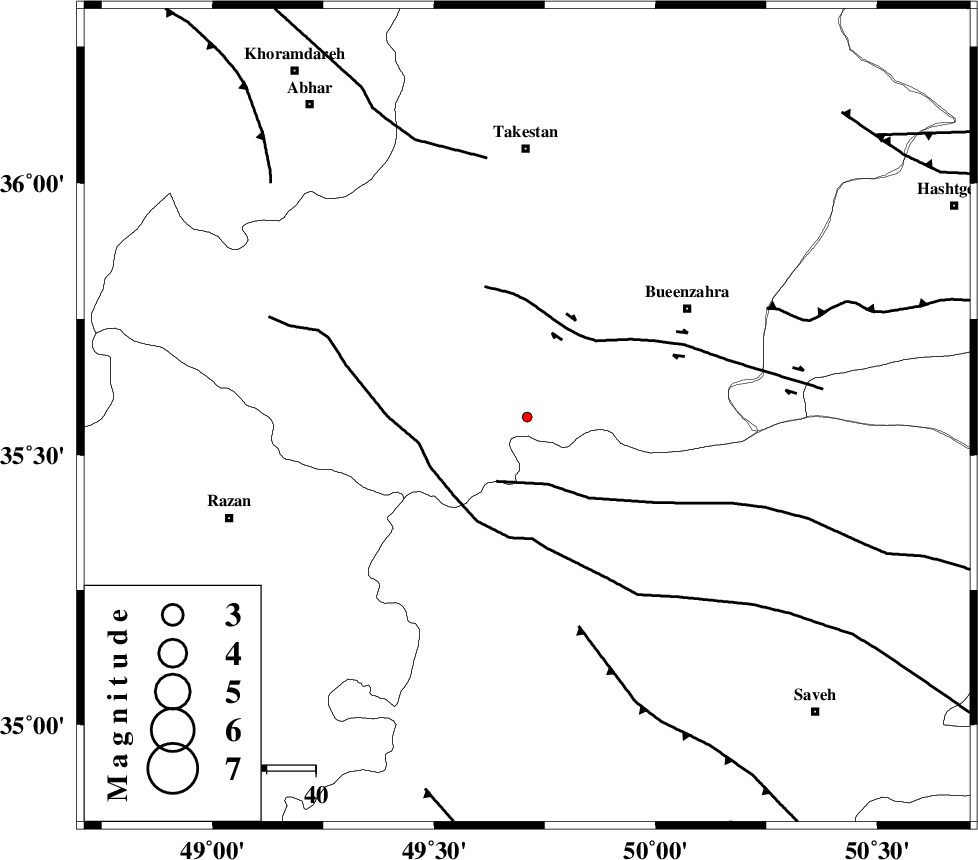

| Location | Lat:35.57 Lon: 49.71 |
| Region | Ghazvin Province, 55 km South of Takestan |
Nearest Cities |
|
| 21 km North West of Duzaj, Markazi Province | |
| 22 km East of Kolanjin, Ghazvin Province | |
| 24 km South of Danesfahan, Ghazvin Province | |
| 30 km South West of Sagezabad, Ghazvin Province | |
| 35 km North West of Razegian, Markazi Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 14 km | |
| IPAK_F (Length: 80 km) , Distance to epicenter: 20 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 22 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90368 | IIEES | ZNJK | N | 3.5 | 0.12 | 2013-08-26 21:35:17 | 2013-08-27 02:31:00 | n |
| 90369 | IIEES | ZNJK | E | 3 | 0.28 | 2013-08-26 21:35:19 | 2013-08-27 02:31:00 | n |
| 90370 | IIEES | GHVR | E | 18.7 | 0.24 | 2013-08-26 21:35:30 | 2013-08-27 02:31:00 | n |
| 90371 | IIEES | GHVR | N | 3.3 | 0.24 | 2013-08-26 21:35:30 | 2013-08-27 02:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2013-08-26 21:34:50 | -0.01 | y | 117 | 166 | |||
| IIEES | ASAO | E | Sg | E | 2013-08-26 21:35:05 | 0.03 | y | 117 | 166 | |||
| IIEES | CHTH | Z | Pg | E | 2013-08-26 21:34:53 | 0.04 | y | 133 | 73 | |||
| IIEES | CHTH | E | Sg | E | 2013-08-26 21:35:09 | -0.02 | y | 133 | 73 | |||
| IIEES | ZNJK | Z | Pg | E | 2013-08-26 21:34:56 | -0.17 | y | 153 | 323 | |||
| IIEES | ZNJK | N | Sg | E | 2013-08-26 21:35:15 | 0.12 | y | 153 | 323 | |||
