Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2013-09-07 23:20:08.2 |
| Date & Time (Local) | 1392/6/17 03:50:08.2 |

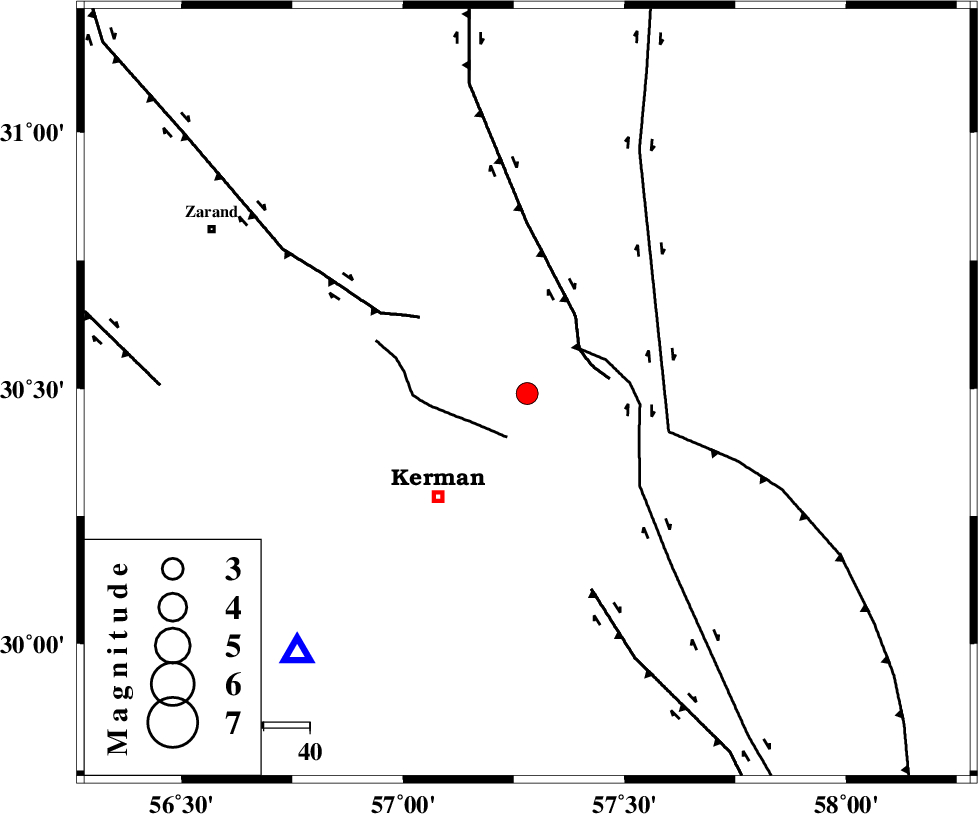

| Location | Lat:30.49 Lon: 57.28 |
| Region | Kerman Province, 29 km North-East of Kerman |
Nearest Cities |
|
| 2 km of Dehlulu, Kerman Province | |
| 23 km South East of Harjand, Kerman Province | |
| 27 km North East of Sarasiyab-e ferangi, Kerman Province | |
| 30 km North East of Kerman, Kerman Province | |
| 34 km East of Hutak, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 10 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 15 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 15 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90480 | IIEES | KRBR | E | 578.5 | 0.24 | 2013-09-07 23:20:38 | 2013-09-08 03:15:00 | n |
| 90481 | IIEES | BSRN | E | 88 | 0.32 | 2013-09-07 23:21:17 | 2013-09-08 03:15:00 | n |
| 90482 | IIEES | YZKH | E | 59.8 | 0.52 | 2013-09-07 23:21:45 | 2013-09-08 03:15:00 | n |
| 90483 | IIEES | YZKH | N | 48.6 | 0.36 | 2013-09-07 23:21:49 | 2013-09-08 03:15:00 | n |
| 90484 | IIEES | TABS | N | 72.8 | 0.64 | 2013-09-07 23:21:56 | 2013-09-08 03:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2013-09-07 23:20:21 | -0.09 | y | 75.1 | 222 | |||
| IIEES | BSRN | Z | Pn | E | 2013-09-07 23:20:46 | 0.25 | y | 240 | 46 | |||
| IIEES | BSRN | N | Sg | E | 2013-09-07 23:21:16 | -0.13 | y | 240 | 46 | |||
| IIEES | YZKH | Z | P | E | 2013-09-07 23:20:57 | 0.07 | y | 332 | 310 | |||
| IIEES | TABS | Z | P | E | 2013-09-07 23:20:59 | -0.11 | y | 351 | 358 | |||
