Systems
Event Specification

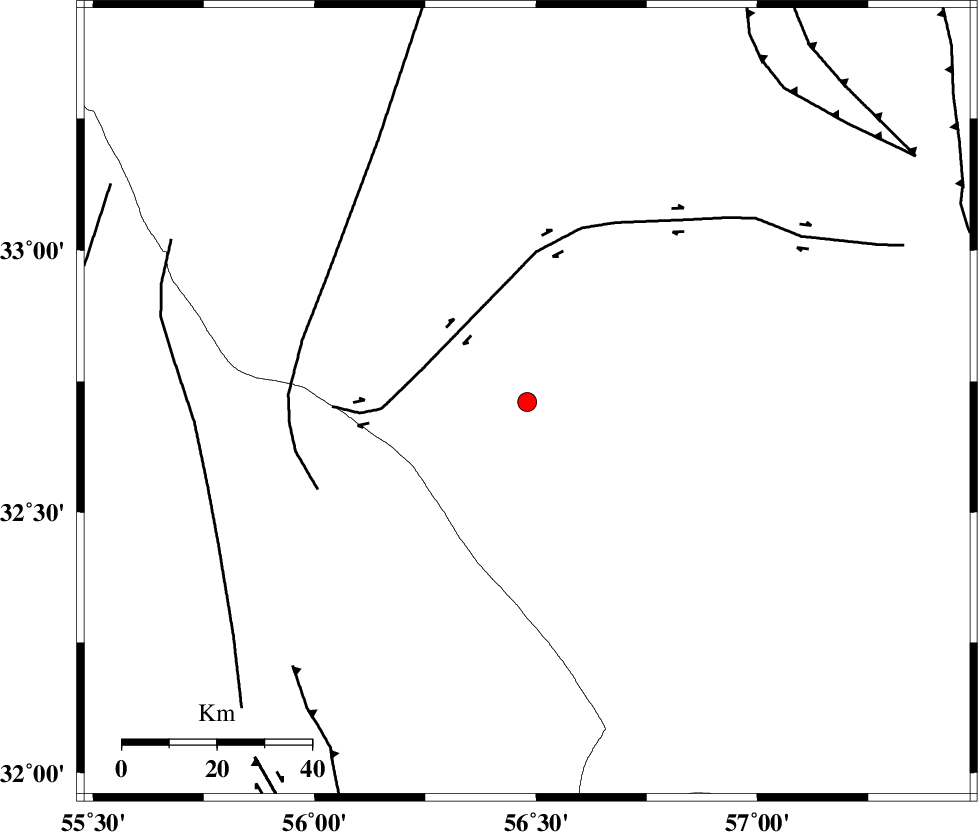

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 2.7
Date & Time (UTC) 2013-09-11 01:47:58.5
Date & Time (Local) 1392/6/20  06:17:58.5
Location Lat:32.71 Lon: 56.48
Region Yazd Province, 107 km South-West of Tabas
Nearest Cities
92 km South West of Kerit, Yazd Province
93 km South East of Robat-e posht-e badam, Yazd Province
102 km South West of Oshtoqran, Yazd Province
103 km North East of Behabad, Yazd Province
107 km South West of Tabas, Yazd Province
Depth 18 km
Agency
Faults within 150 km:
CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 24 km
NAINI_F (Length: 342 km) , Distance to epicenter: 48 km
SARBALA_F (Length: 92 km) , Distance to epicenter: 70 km
Number of Phases 6
RMS 0.1
Number of Stations 4
Error in Latitude >6.7 km
Error in Longitude 5.5 km
Error in Depth 15.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
90513IIEESYZKHN 68.40.522013-09-11 01:48:522013-09-11 03:12:00n
90514IIEESYZKHE 145.50.362013-09-11 01:48:532013-09-11 03:12:00n
90515IIEESKRBRE 21.40.442013-09-11 01:49:222013-09-11 03:12:00n
90516IIEESKRBRN 22.40.242013-09-11 01:49:232013-09-11 03:12:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESTABSZ Pg E2013-09-11 01:48:180.04y11930
IIEESTABSE Sg E2013-09-11 01:48:330y11930
IIEESYZKHZ Pg E2013-09-11 01:48:280y181259
IIEESYZKHN Sg E2013-09-11 01:48:50-0.03y181259
IIEESBSRNZ Pn E2013-09-11 01:48:38-0.11y262108
IIEESKRBRZ Pn E2013-09-11 01:48:430.12y304175
