Event Specification
Magnitude |
1.9 |
| Date & Time (UTC) | 2013-09-11 17:15:23.4 |
| Date & Time (Local) | 1392/6/20 21:45:23.4 |

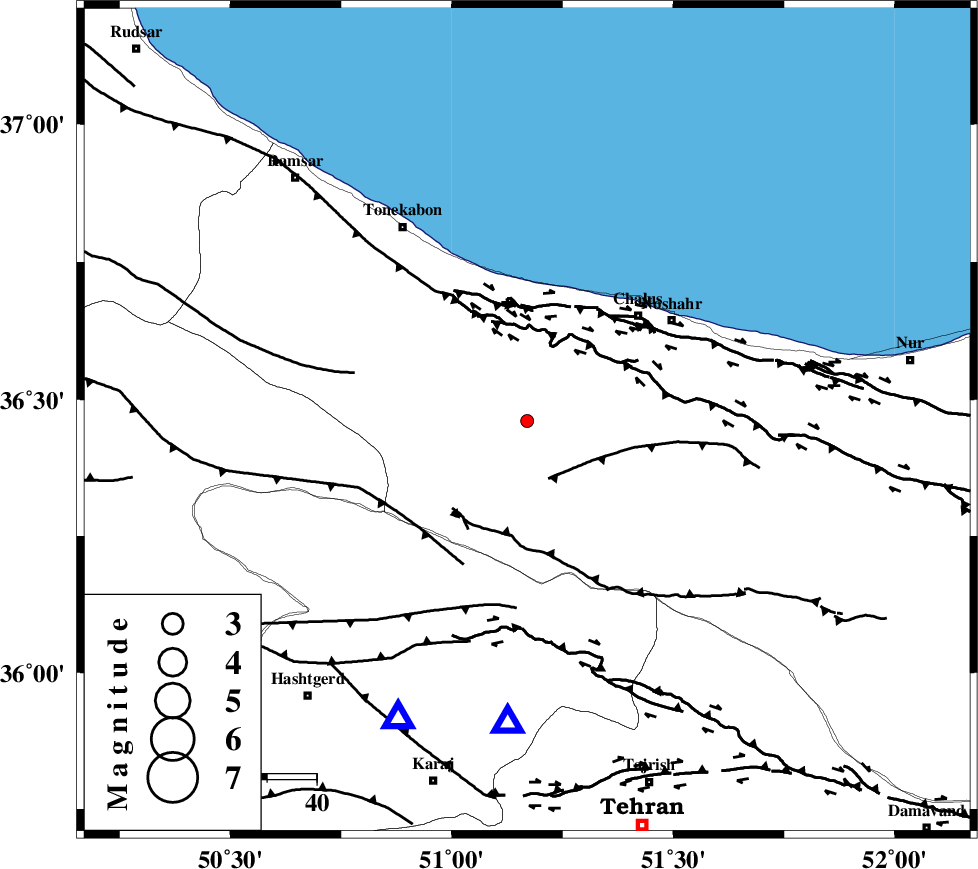

| Location | Lat:36.46 Lon: 51.17 |
| Region | Mazandaran Province, 31 km South-West of Chalus |
Nearest Cities |
|
| 8 km of Goyter, Mazandaran Province | |
| 9 km of Kardichal, Mazandaran Province | |
| 9 km North of Marzanabad, Mazandaran Province | |
| 11 km North of Tavir, Mazandaran Province | |
| 26 km South of Kelarabad, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KOJOOR (Length: 75 km) , Distance to epicenter: 12 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 18 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 22 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90530 | IIEES | ZNJK | N | 13.5 | 0.32 | 2013-09-11 17:16:28 | 2013-09-12 04:45:00 | n |
| 90531 | IIEES | ZNJK | E | 7.4 | 0.36 | 2013-09-11 17:16:29 | 2013-09-12 04:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2013-09-11 17:15:34 | 0.01 | y | 60.8 | 184 | |||
| IIEES | CHTH | N | Sg | E | 2013-09-11 17:15:42 | -0.08 | y | 60.8 | 184 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-09-11 17:15:58 | -0.13 | y | 224 | 277 | |||
| IIEES | ZNJK | N | Sg | E | 2013-09-11 17:16:27 | 0.03 | y | 224 | 277 | |||
| IIEES | ASAO | Z | Pn | E | 2013-09-11 17:16:00 | 0.17 | y | 236 | 206 | |||
