Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-09-15 13:09:34.0 |
| Date & Time (Local) | 1392/6/24 17:39:34.0 |

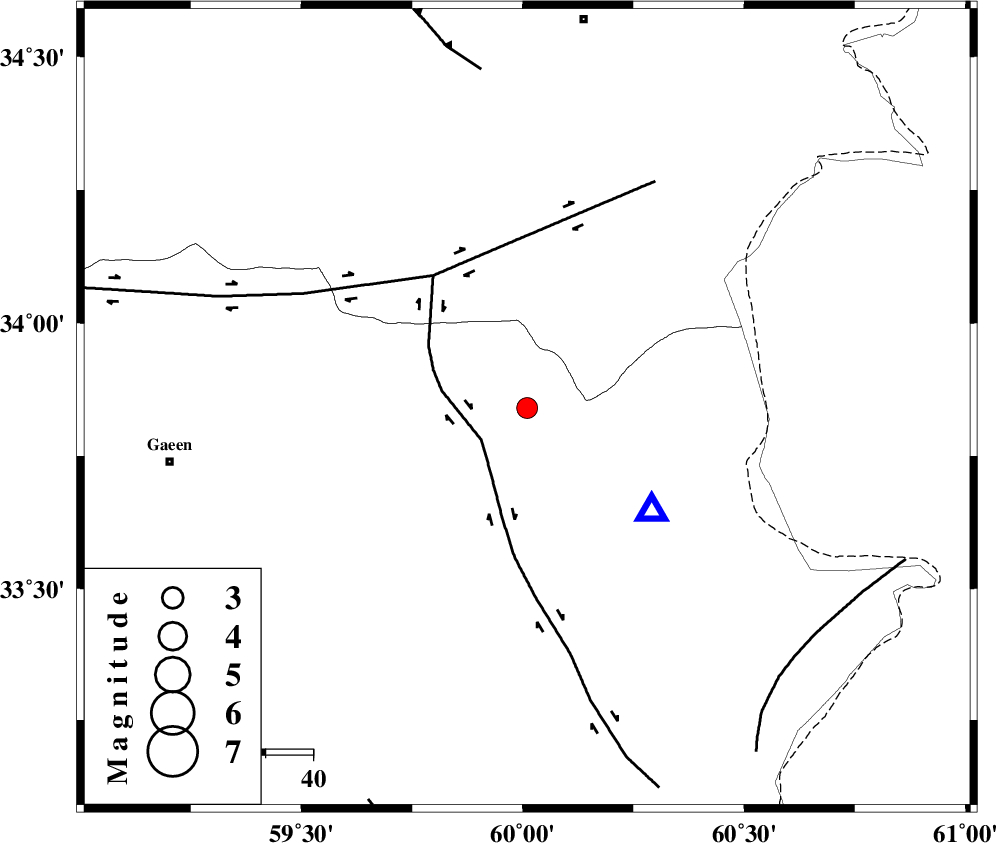

| Location | Lat:33.84 Lon: 60.01 |
| Region | 82 km South-West of Khaf |
Nearest Cities |
|
| 18 km North of Abiz, Khorasan(south) Province | |
| 26 km North West of Shahdokht, Khorasan(south) Province | |
| 29 km North of Hajiabad, Khorasan(south) Province | |
| 37 km South West of Sirkhun, Khorasan(center) Province | |
| 38 km South West of Pasgah-e chazul, Khorasan(center) Province | |
| Depth | 30 km |
| Agency | |
Faults within 150 km: |
|
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 12 km | |
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 34 km | |
| JANGAL_F (Length: 111 km) , Distance to epicenter: 71 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90548 | IIEES | SHRT | E | 1541.5 | 0.44 | 2013-09-15 13:09:47 | 2013-09-16 04:18:00 | n |
| 90549 | IIEES | SHRT | N | 821.4 | 0.52 | 2013-09-15 13:09:47 | 2013-09-16 04:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pg | E | 2013-09-15 13:09:41 | 0.1 | y | 33.3 | 129 | |||
| IIEES | SHRT | N | Sg | E | 2013-09-15 13:09:46 | -0.07 | y | 33.3 | 129 | |||
| IIEES | BSRN | Z | Pn | E | 2013-09-15 13:10:08 | 0.02 | y | 224 | 202 | |||
| IIEES | TABS | Z | Pn | E | 2013-09-15 13:10:13 | -0.11 | y | 269 | 266 | |||
| IIEES | TABS | N | Sg | E | 2013-09-15 13:10:48 | 0.01 | y | 269 | 266 | |||
| IIEES | NASN | Z | Pn | E | 2013-09-15 13:11:05 | 0.12 | y | 681 | 262 | |||
