Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-09-17 16:19:41.3 |
| Date & Time (Local) | 1392/6/26 20:49:41.3 |

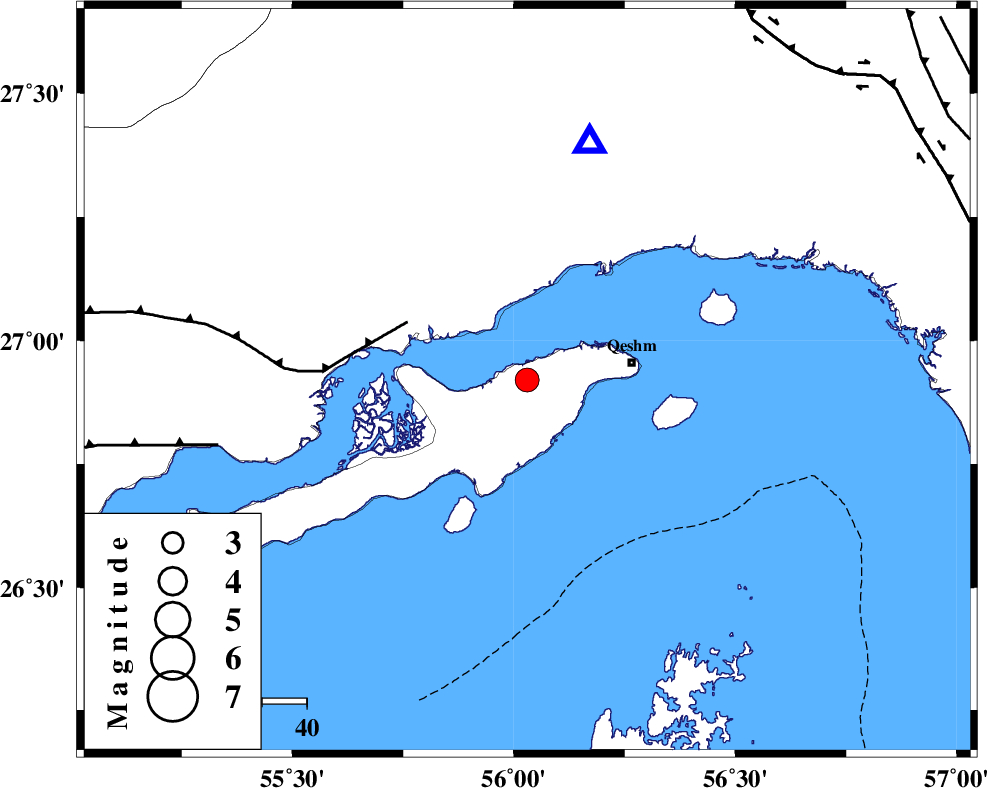

| Location | Lat:26.92 Lon: 56.03 |
| Region | Persian Gulf, 24 km West of Qeshm |
Nearest Cities |
|
| 16 km North of Suza, Hormozgan Province | |
| 24 km West of Qeshm, Hormozgan Province | |
| 39 km South West of Bandar-e abbas, Hormozgan Province | |
| 44 km East of Bandar-e khamir, Hormozgan Province | |
| 81 km South East of Fin, Hormozgan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 30 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 71 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 95 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >6.3 km |
| Error in Longitude | 3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90569 | IIEES | BNDS | N | 2981.4 | 0.88 | 2013-09-17 16:20:01 | 2013-09-17 06:00:00 | n |
| 90570 | IIEES | KRBR | N | 79.5 | 0.64 | 2013-09-17 16:21:15 | 2013-09-17 06:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pn | E | 2013-09-17 16:20:32 | -0.07 | y | 347 | 12 | |||
| IIEES | CHBR | Z | Pn | E | 2013-09-17 16:20:47 | 0.02 | y | 469 | 107 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-09-17 16:20:57 | -0.1 | y | 553 | 56 | |||
| IIEES | BSRN | Z | Pn | E | 2013-09-17 16:21:08 | 0.21 | y | 635 | 28 | |||
