Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-09-20 12:42:35.0 |
| Date & Time (Local) | 1392/6/29 17:12:35.0 |

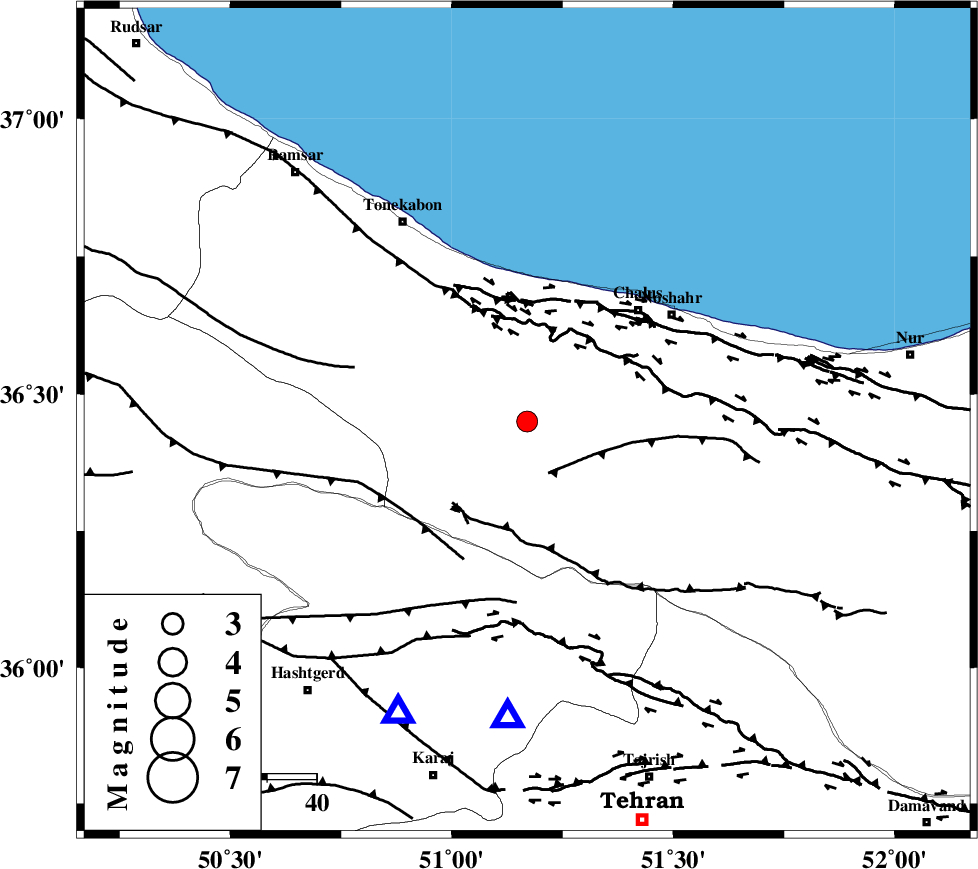

| Location | Lat:36.45 Lon: 51.17 |
| Region | Mazandaran Province, 32 km South-West of Chalus |
Nearest Cities |
|
| 9 km North of Marzanabad, Mazandaran Province | |
| 9 km of Goyter, Mazandaran Province | |
| 10 km of Kardichal, Mazandaran Province | |
| 10 km North of Tavir, Mazandaran Province | |
| 27 km South of Kelarabad, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KOJOOR (Length: 75 km) , Distance to epicenter: 11 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 19 km | |
| KANDOVAN_F (Length: 90 km) , Distance to epicenter: 23 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90586 | IIEES | ZNJK | N | 98.6 | 0.4 | 2013-09-20 12:43:42 | 2013-09-20 02:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2013-09-20 12:42:45 | -0.03 | y | 60.3 | 184 | |||
| IIEES | CHTH | E | Sg | E | 2013-09-20 12:42:53 | -0.02 | y | 60.3 | 184 | |||
| IIEES | GHVR | Z | Pn | E | 2013-09-20 12:43:09 | -0.01 | y | 219 | 178 | |||
| IIEES | GHVR | E | Sg | E | 2013-09-20 12:43:37 | -0.02 | y | 219 | 178 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-09-20 12:43:10 | -0.06 | y | 224 | 277 | |||
| IIEES | ASAO | Z | Pn | E | 2013-09-20 12:43:12 | 0.14 | y | 235 | 206 | |||
