Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2013-09-27 03:57:36.7 |
| Date & Time (Local) | 1392/7/5 07:27:36.7 |

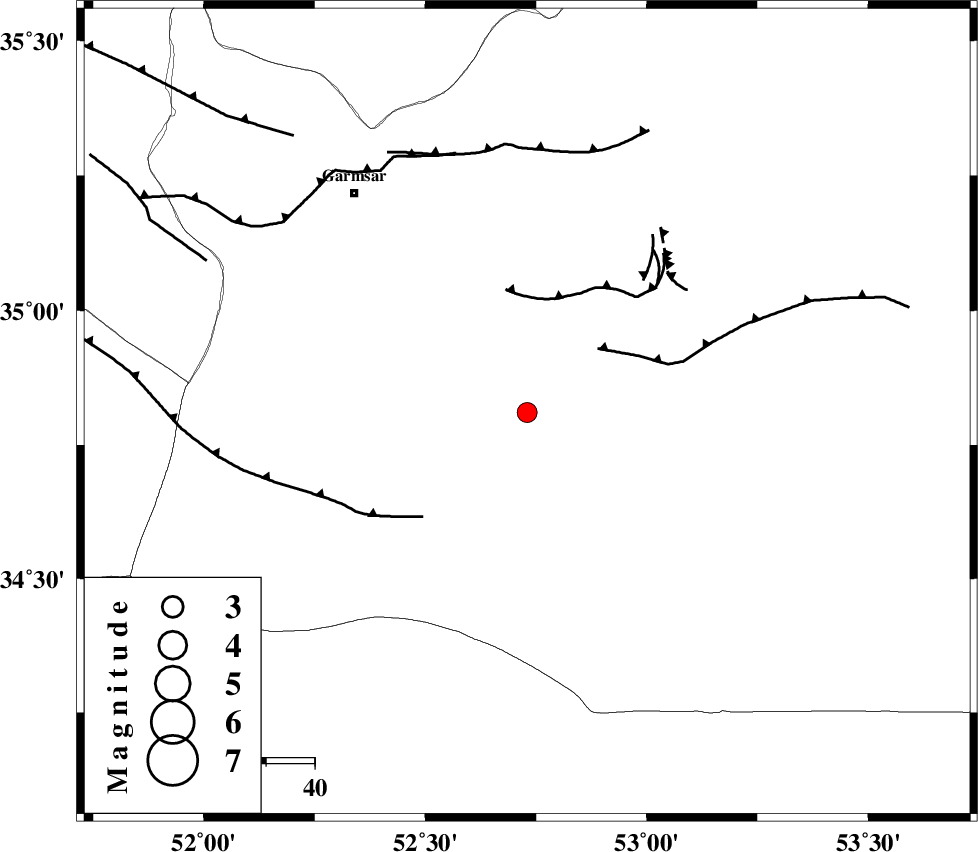

| Location | Lat:34.81 Lon: 52.73 |
| Region | Semnan Province, 57 km South-East of Garmsar |
Nearest Cities |
|
| 49 km South East of Kohanabad, Semnan Province | |
| 49 km South East of Gardovan, Semnan Province | |
| 51 km South East of Davarabad, Semnan Province | |
| 52 km South East of Aradan, Semnan Province | |
| 56 km South East of Lajran, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 20 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 25 km | |
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 28 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90640 | IIEES | GHVR | N | 137.9 | 0.24 | 2013-09-27 03:58:21 | 2013-09-27 05:29:00 | n |
| 90641 | IIEES | GHVR | E | 166.6 | 0.24 | 2013-09-27 03:58:25 | 2013-09-27 05:29:00 | n |
| 90642 | IIEES | CHTH | E | 72.2 | 0.4 | 2013-09-27 03:58:39 | 2013-09-27 05:29:00 | n |
| 90643 | IIEES | CHTH | N | 100.6 | 0.28 | 2013-09-27 03:58:41 | 2013-09-27 05:29:00 | n |
| 90644 | IIEES | ASAO | E | 57.6 | 0.32 | 2013-09-27 03:58:47 | 2013-09-27 05:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2013-09-27 03:58:00 | 0.08 | y | 141 | 255 | |||
| IIEES | GHVR | N | Sg | E | 2013-09-27 03:58:17 | 0.05 | y | 141 | 255 | |||
| IIEES | CHTH | Z | Pn | E | 2013-09-27 03:58:08 | -0.18 | y | 190 | 310 | |||
| IIEES | ASAO | Z | Pn | E | 2013-09-27 03:58:15 | -0.04 | y | 249 | 264 | |||
| IIEES | YZKH | Z | Pn | E | 2013-09-27 03:58:24 | 0.19 | y | 319 | 147 | |||
| IIEES | YZKH | N | Sg | E | 2013-09-27 03:59:06 | -0.18 | y | 319 | 147 | |||
| IIEES | TABS | Z | Pn | E | 2013-09-27 03:58:37 | 0.11 | y | 425 | 106 | |||
