Event Specification
Magnitude |
1.9 |
| Date & Time (UTC) | 2013-10-03 10:19:38.6 |
| Date & Time (Local) | 1392/7/11 13:49:38.6 |

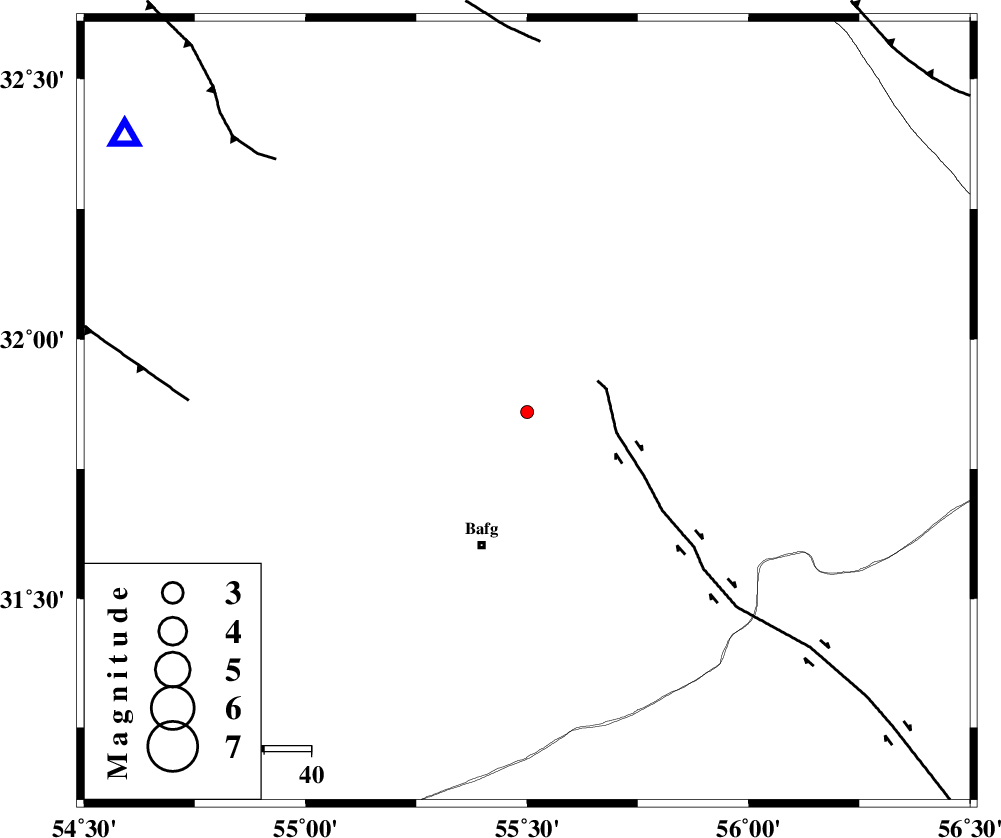

| Location | Lat:31.86 Lon: 55.5 |
| Region | Yazd Province, 30 km North-East of Bafq |
Nearest Cities |
|
| 27 km North of Mobarake, Yazd Province | |
| 30 km North West of Kushk, Yazd Province | |
| 30 km North East of Bafq, Yazd Province | |
| 50 km West of Behabad, Yazd Province | |
| 57 km North West of Benestan, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 13 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 39 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 43 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90677 | IIEES | YZKH | E | 25.9 | 0.4 | 2013-10-03 10:20:17 | 2013-10-03 11:49:00 | n |
| 90678 | IIEES | KRBR | N | 12.2 | 0.52 | 2013-10-03 10:20:50 | 2013-10-03 11:49:00 | n |
| 90679 | IIEES | TABS | N | 6.4 | 0.48 | 2013-10-03 10:21:02 | 2013-10-03 11:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-10-03 10:19:56 | 0.02 | y | 104 | 305 | |||
| IIEES | YZKH | N | Sg | E | 2013-10-03 10:20:09 | -0.03 | y | 104 | 305 | |||
| IIEES | KRBR | Z | Pn | E | 2013-10-03 10:20:16 | 0.09 | y | 241 | 150 | |||
| IIEES | KRBR | N | Sg | E | 2013-10-03 10:20:46 | -0.06 | y | 241 | 150 | |||
| IIEES | TABS | Z | Pn | E | 2013-10-03 10:20:17 | -0.03 | y | 250 | 37 | |||
| IIEES | BSRN | Z | Pn | E | 2013-10-03 10:20:29 | 0.01 | y | 343 | 87 | |||
