Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2013-10-08 04:49:23.1 |
| Date & Time (Local) | 1392/7/16 08:19:23.1 |
| Location | Lat:35.69 Lon: 52.08 |
| Region | Tehran Province, 3 km Damavand |
Nearest Cities |
|
| 3 km of Damavand, Tehran Province | |
| 7 km North of Ab sard, Tehran Province | |
| 11 km North of Mara, Tehran Province | |
| 11 km of Abali, Tehran Province | |
| 18 km North of Kilan, Tehran Province | |
| Depth | 46 km |
| Agency | |

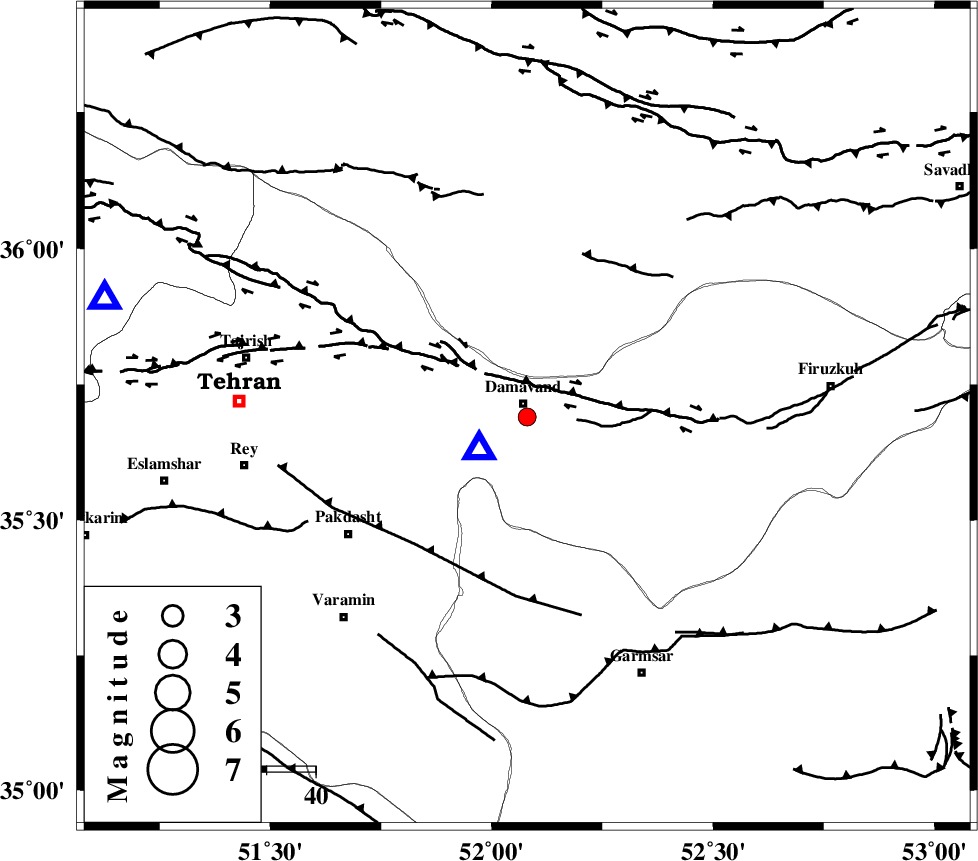

Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 8 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 31 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 35 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 2.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90740 | IIEES | GHVR | E | 111.6 | 0.31 | 2013-10-08 04:50:13 | 2013-10-08 06:16:00 | n |
| 90741 | IIEES | ASAO | E | 22.1 | 0.18 | 2013-10-08 04:50:29 | 2013-10-08 06:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2013-10-08 04:49:39 | 0.23 | y | 89.4 | 286 | |||
| IIEES | CHTH | E | Sg | E | 2013-10-08 04:49:51 | -0.09 | y | 89.4 | 286 | |||
| IIEES | GHVR | Z | Pg | E | 2013-10-08 04:49:49 | 0.18 | y | 154 | 210 | |||
| IIEES | GHVR | N | Sg | E | 2013-10-08 04:50:07 | -0.1 | y | 154 | 210 | |||
| IIEES | ASAO | Z | Pn | E | 2013-10-08 04:49:56 | -0.06 | y | 226 | 236 | |||
| IIEES | ASAO | E | Sg | E | 2013-10-08 04:50:26 | -0.04 | y | 226 | 236 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-10-08 04:50:08 | -0.15 | y | 324 | 291 | |||
