Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-10-17 18:46:14.9 |
| Date & Time (Local) | 1392/7/25 22:16:14.9 |

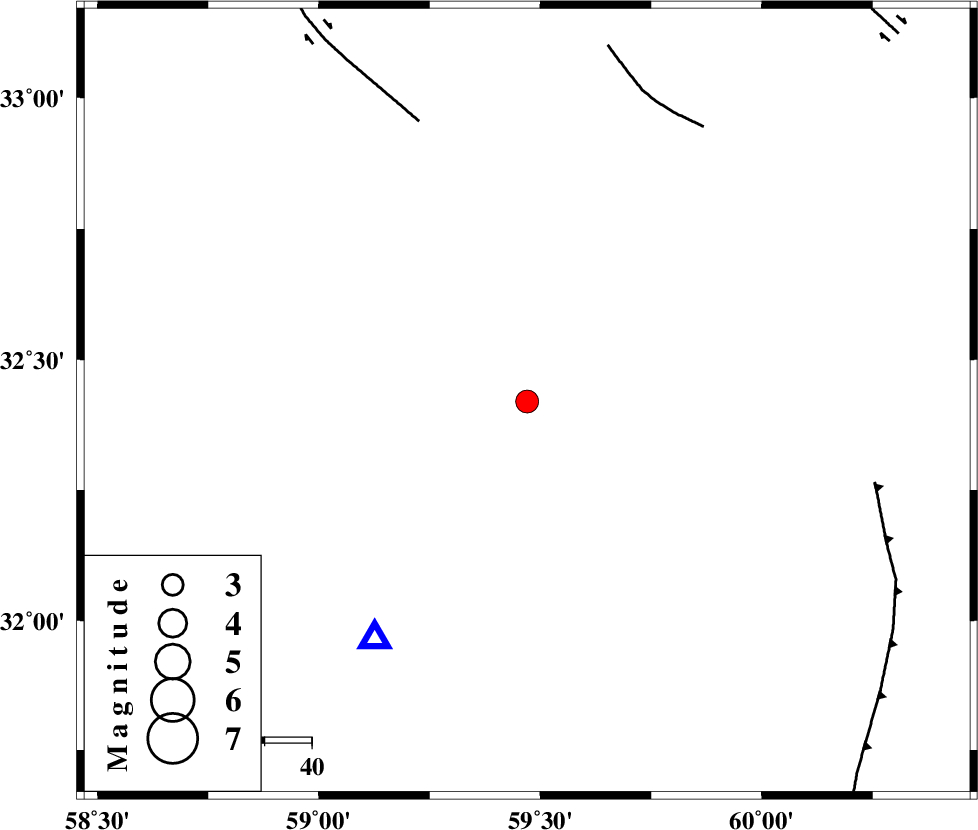

| Location | Lat:32.42 Lon: 59.47 |
| Region | Khorasan(south) Province, 38 km South-West of Sarbisheh |
Nearest Cities |
|
| 10 km of Mokhtaran, Khorasan(south) Province | |
| 13 km South of Kalateh soleyman, Khorasan(south) Province | |
| 23 km South East of Gaz, Khorasan(south) Province | |
| 36 km South West of Salmabad, Khorasan(south) Province | |
| 37 km South West of Sarbisheh, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 64 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 69 km | |
| E_NEH_F (Length: 148 km) , Distance to epicenter: 76 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90815 | IIEES | KRBR | N | 60.6 | 0.52 | 2013-10-17 18:48:10 | 2013-10-17 08:10:00 | n |
| 90816 | IIEES | KRBR | E | 49.6 | 0.44 | 2013-10-17 18:48:10 | 2013-10-17 08:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2013-10-17 18:46:25 | -0.07 | y | 60.1 | 212 | |||
| IIEES | SHRT | Z | Pg | E | 2013-10-17 18:46:40 | 0.12 | y | 156 | 29 | |||
| IIEES | SHRT | N | Sg | E | 2013-10-17 18:46:59 | -0.11 | y | 156 | 29 | |||
| IIEES | TABS | Z | Pn | E | 2013-10-17 18:46:54 | 0.15 | y | 258 | 302 | |||
| IIEES | TABS | E | Sg | E | 2013-10-17 18:47:27 | -0.05 | y | 258 | 302 | |||
| IIEES | YZKH | Z | Pn | E | 2013-10-17 18:47:19 | -0.05 | y | 458 | 271 | |||
