Event Specification
Magnitude |
2.2 |
| Date & Time (UTC) | 2013-10-18 23:28:08.5 |
| Date & Time (Local) | 1392/7/27 02:58:08.5 |

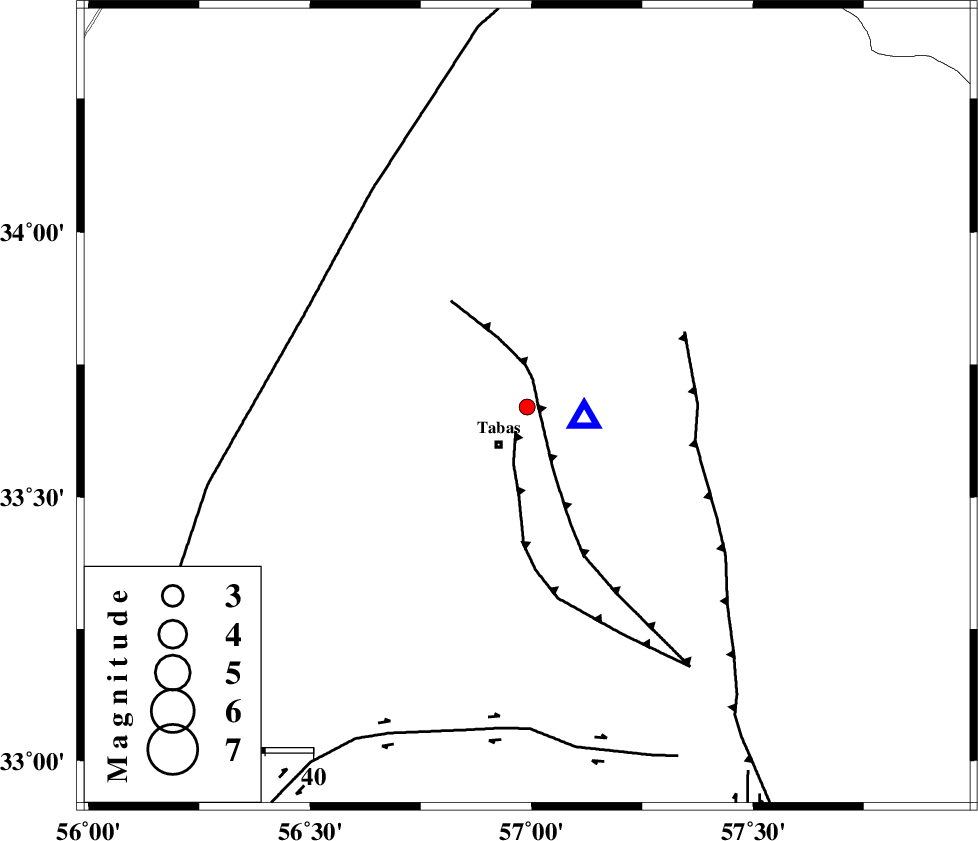

| Location | Lat:33.67 Lon: 56.99 |
| Region | Yazd Province, 10 km Tabas |
Nearest Cities |
|
| 10 km North of Tabas, Yazd Province | |
| 15 km North of Oshtoqran, Yazd Province | |
| 20 km East of Jokhvah, Yazd Province | |
| 25 km North of Kerit, Yazd Province | |
| 30 km South West of Reqqeh, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 3 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 6 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 36 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 2 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90822 | IIEES | YZKH | N | 10.8 | 0.28 | 2013-10-18 23:29:28 | 2013-10-19 02:23:00 | n |
| 90823 | IIEES | YZKH | E | 17.8 | 0.4 | 2013-10-18 23:29:28 | 2013-10-19 02:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2013-10-18 23:28:11 | -0.37 | y | 12.6 | 101 | |||
| IIEES | YZKH | Z | Pn | E | 2013-10-18 23:28:49 | 0.23 | y | 265 | 238 | |||
| IIEES | YZKH | E | Sg | E | 2013-10-18 23:29:23 | -0.15 | y | 265 | 238 | |||
| IIEES | BSRN | Z | Pn | E | 2013-10-18 23:28:50 | 0.1 | y | 276 | 133 | |||
| IIEES | BSRN | N | Sg | E | 2013-10-18 23:29:26 | 0.03 | y | 276 | 133 | |||
| IIEES | SHRT | N | Pn | E | 2013-10-18 23:28:54 | 0.18 | y | 307 | 90 | |||
