Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2013-11-05 02:19:29.6 |
| Date & Time (Local) | 1392/8/14 05:49:29.6 |

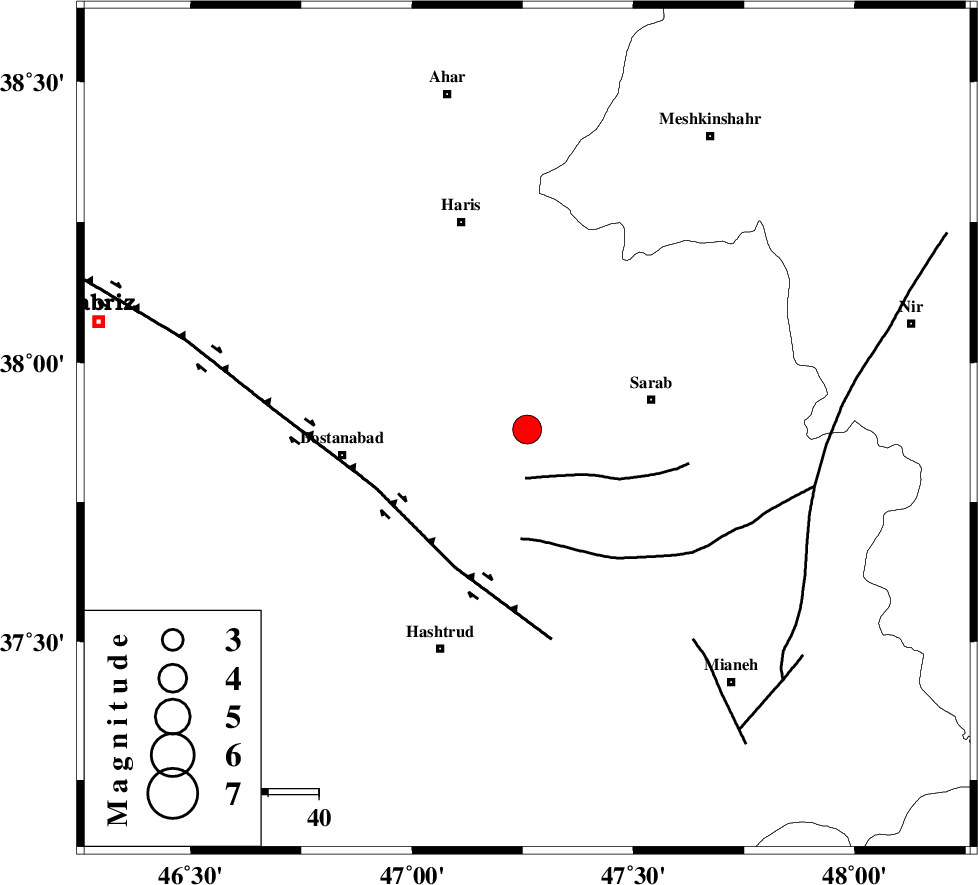

| Location | Lat:37.88 Lon: 47.26 |
| Region | Azarbaijan Sharghi Province, 25 km West of Sarab |
Nearest Cities |
|
| 11 km North West of Abarghan, Azarbaijan Sharghi Province | |
| 11 km East of Sharabian, Azarbaijan Sharghi Province | |
| 18 km North East of Sarcheshmeh, Azarbaijan Sharghi Province | |
| 20 km South of Mehraban, Azarbaijan Sharghi Province | |
| 24 km North West of Asbforushan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 10 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 31 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 95 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90913 | IIEES | ZNJK | N | 2059.1 | 0.28 | 2013-11-05 02:20:22 | 2013-11-05 02:44:00 | n |
| 90914 | IIEES | ZNJK | E | 2399.7 | 0.32 | 2013-11-05 02:20:23 | 2013-11-05 02:44:00 | n |
| 90915 | IIEES | DAMV | E | 219.2 | 0.68 | 2013-11-05 02:21:53 | 2013-11-05 02:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-11-05 02:19:49 | -0.35 | y | 117 | 28 | |||
| IIEES | GRMI | E | Sg | E | 2013-11-05 02:20:04 | 0.18 | y | 117 | 28 | |||
| IIEES | MAKU | Z | Pn | E | 2013-11-05 02:20:12 | 0.06 | y | 278 | 307 | |||
| IIEES | MAKU | N | Sg | E | 2013-11-05 02:20:48 | 0.02 | y | 278 | 307 | |||
| IIEES | CHTH | Z | Pn | E | 2013-11-05 02:20:28 | 0.14 | y | 408 | 121 | |||
| IIEES | ASAO | Z | Pn | E | 2013-11-05 02:20:32 | -0.21 | y | 445 | 145 | |||
| IIEES | GHVR | Z | Pn | E | 2013-11-05 02:20:42 | 0.21 | y | 520 | 135 | |||
