Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-11-29 07:43:15.0 |
| Date & Time (Local) | 1392/9/8 11:13:15.0 |

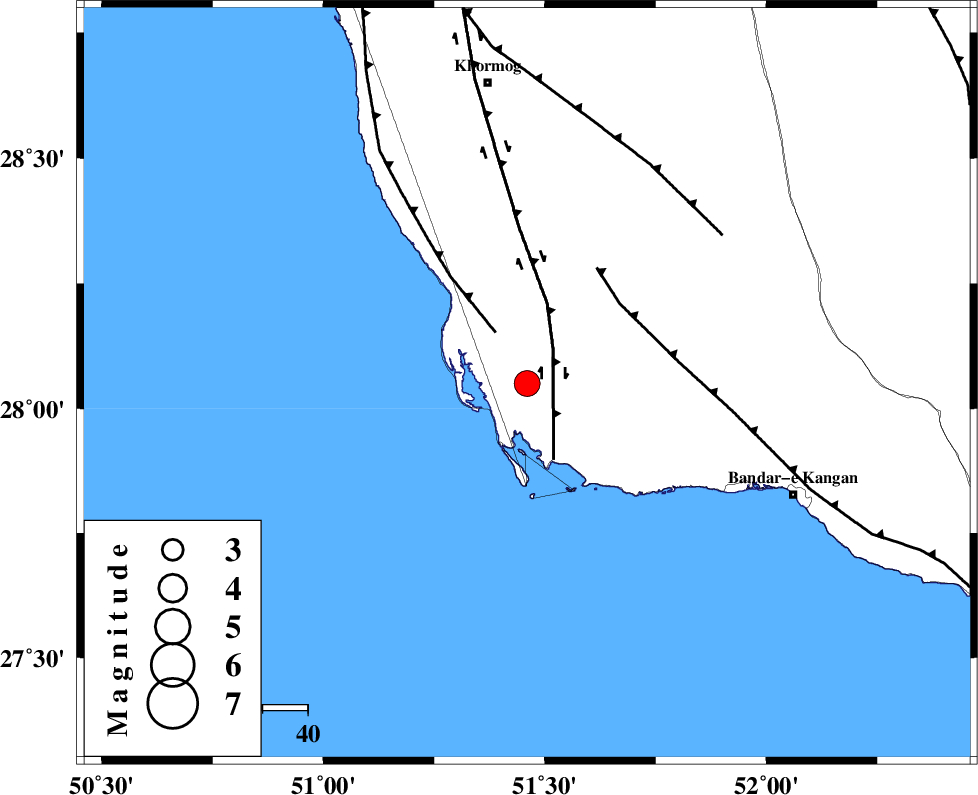

| Location | Lat:28.05 Lon: 51.46 |
| Region | Bushehr Province, 68 km South of Khormog |
Nearest Cities |
|
| 1 km of Bardkhun, Bushehr Province | |
| 14 km South of Abkesh, Bushehr Province | |
| 16 km South of Ziyarat, Bushehr Province | |
| 30 km West of Abdan, Bushehr Province | |
| 32 km South of Kaki, Bushehr Province | |
| Depth | 30 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 9 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 13 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 27 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >5.7 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91106 | IIEES | KRBR | E | 33.3 | 0.44 | 2013-11-29 07:45:36 | 2013-11-29 08:15:00 | n |
| 91107 | IIEES | YZKH | N | 33.4 | 0.28 | 2013-11-29 07:45:34 | 2013-11-29 08:15:00 | n |
| 91108 | IIEES | ASAO | E | 13.8 | 0.52 | 2013-11-29 07:46:08 | 2013-11-29 08:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-11-29 07:43:30 | -0.04 | y | 91.9 | 350 | |||
| IIEES | AHRM | N | Sg | E | 2013-11-29 07:43:42 | 0.03 | y | 91.9 | 350 | |||
| IIEES | KRBR | Z | Pn | E | 2013-11-29 07:44:31 | 0.12 | y | 559 | 66 | |||
| IIEES | YZKH | Z | Pn | E | 2013-11-29 07:44:31 | -0.17 | y | 568 | 31 | |||
| IIEES | ASAO | Z | Pn | E | 2013-11-29 07:44:52 | 0.09 | y | 733 | 350 | |||
