Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-12-01 04:48:49.8 |
| Date & Time (Local) | 1392/9/10 08:18:49.8 |

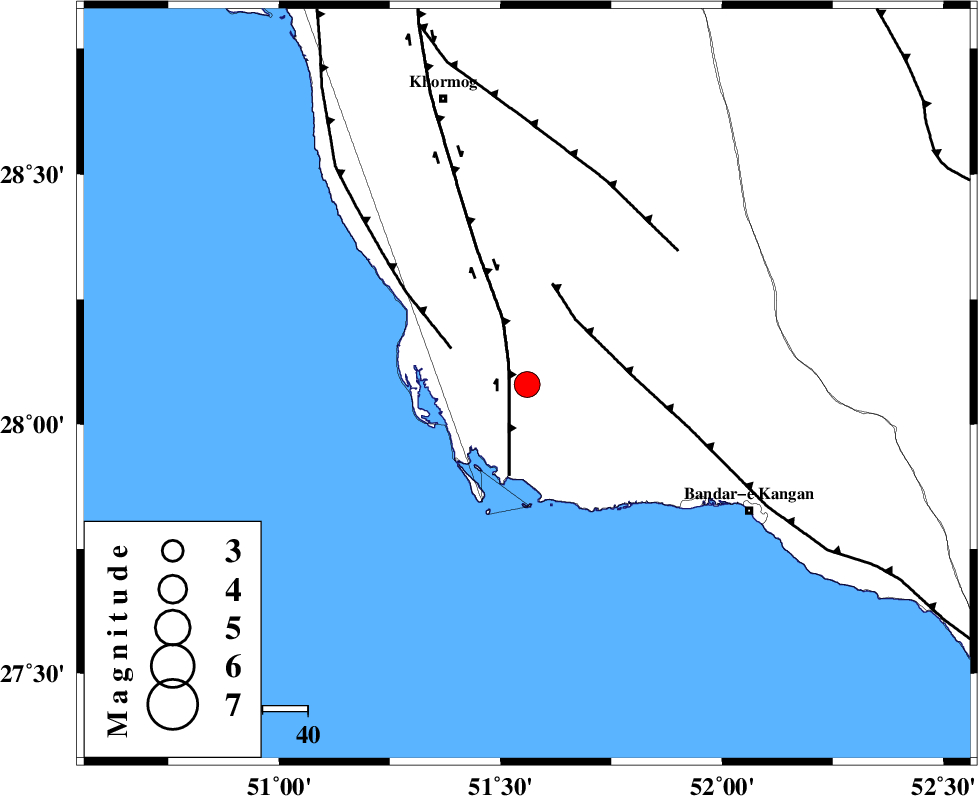

| Location | Lat:28.08 Lon: 51.56 |
| Region | Bushehr Province, 66 km South-East of Khormog |
Nearest Cities |
|
| 9 km North of Bardkhun, Bushehr Province | |
| 10 km of Abkesh, Bushehr Province | |
| 20 km North West of Abdan, Bushehr Province | |
| 21 km East of Ziyarat, Bushehr Province | |
| 29 km South of Kaki, Bushehr Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 6 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 18 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 19 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >7.4 km |
| Error in Longitude | 9 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91119 | IIEES | AHRM | E | 2114.9 | 0.57 | 2013-12-01 04:49:21 | 2013-12-01 06:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-12-01 04:49:05 | -0.04 | y | 90.4 | 344 | |||
| IIEES | AHRM | N | Sg | E | 2013-12-01 04:49:16 | -0.05 | y | 90.4 | 344 | |||
| IIEES | KRBR | Z | Pn | E | 2013-12-01 04:50:05 | -0.11 | y | 549 | 66 | |||
| IIEES | YZKH | Z | P | E | 2013-12-01 04:50:07 | 0.42 | y | 560 | 31 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-12-01 04:50:17 | 0.06 | y | 645 | 347 | |||
| IIEES | BSRN | Z | Pn | E | 2013-12-01 04:50:42 | -0.4 | y | 847 | 58 | |||
