Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-12-15 21:36:31.2 |
| Date & Time (Local) | 1392/9/25 01:06:31.2 |

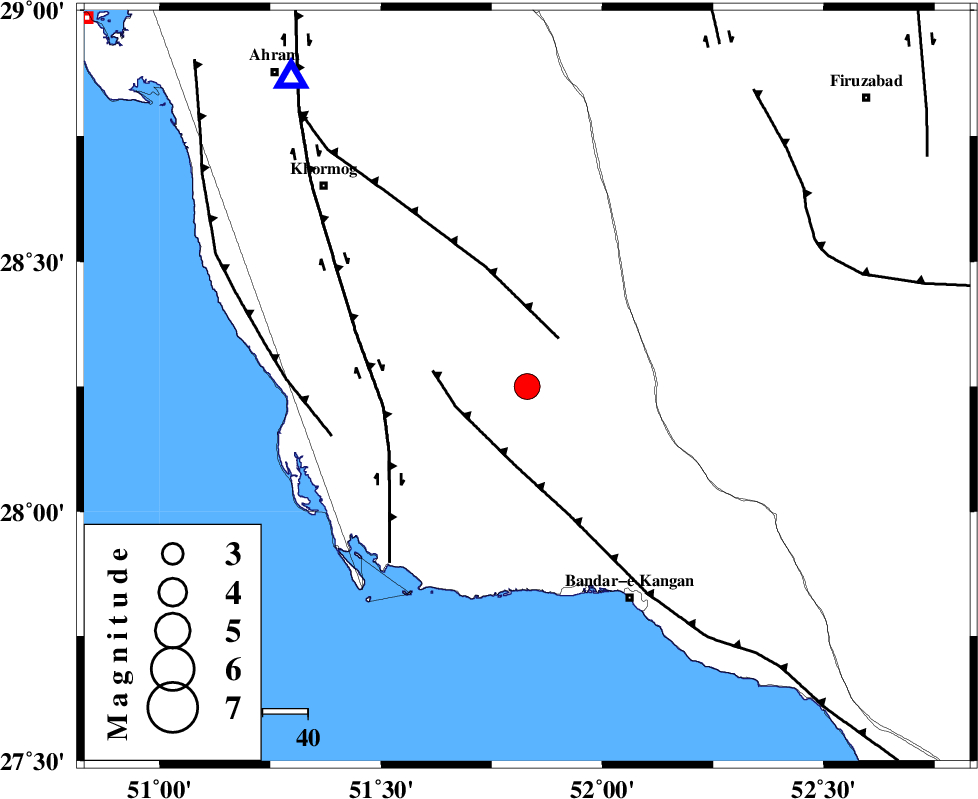

| Location | Lat:28.25 Lon: 51.83 |
| Region | Bushehr Province, 52 km North-West of Bandar-e kangan |
Nearest Cities |
|
| 17 km South of Shanbeh, Bushehr Province | |
| 20 km North of Abdan, Bushehr Province | |
| 31 km North East of Abkesh, Bushehr Province | |
| 32 km East of Kaki, Bushehr Province | |
| 33 km North West of Riz, Bushehr Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 13 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 16 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 32 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91215 | IIEES | AHRM | N | 2307.6 | 0.56 | 2013-12-15 21:37:01 | 2013-12-15 10:15:00 | n |
| 91216 | IIEES | AHRM | E | 2260.1 | 0.4 | 2013-12-15 21:37:02 | 2013-12-15 10:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-12-15 21:36:45 | -0.03 | y | 86 | 323 | |||
| IIEES | AHRM | E | Sg | E | 2013-12-15 21:36:56 | -0.04 | y | 86 | 323 | |||
| IIEES | KRBR | Z | Pn | E | 2013-12-15 21:37:43 | -0.08 | y | 517 | 67 | |||
| IIEES | KRBR | E | S | E | 2013-12-15 21:38:36 | 0.02 | y | 517 | 67 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-12-15 21:37:58 | 0.08 | y | 634 | 344 | |||
| IIEES | GHVR | Z | Pn | E | 2013-12-15 21:38:05 | -0.04 | y | 693 | 356 | |||
| IIEES | ASAO | Z | Pn | E | 2013-12-15 21:38:08 | 0.19 | y | 719 | 347 | |||
