Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2014-01-10 14:30:39.3 |
| Date & Time (Local) | 1392/10/20 18:00:39.3 |

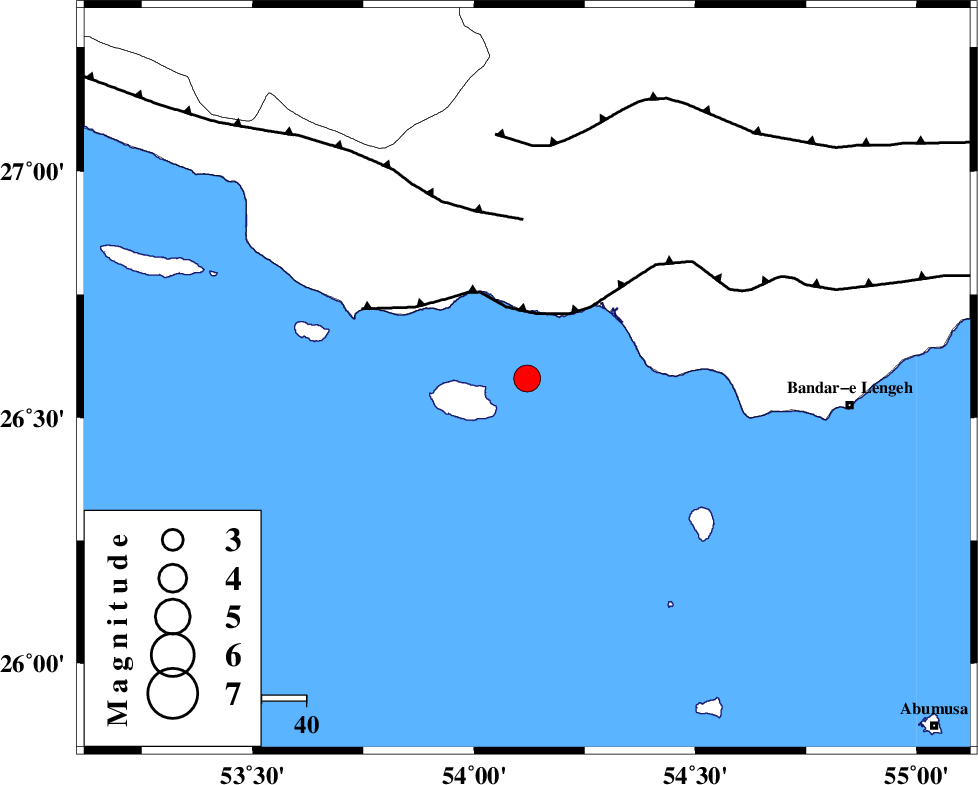

| Location | Lat:26.58 Lon: 54.12 |
| Region | Persian Gulf, 73 km West of Bandar-e lengeh |
Nearest Cities |
|
| 51 km South West of Jenah, Hormozgan Province | |
| 73 km North West of Bandar-e lengeh, Hormozgan Province | |
| 73 km South West of Bastak, Hormozgan Province | |
| 76 km South East of Ahl, Fars Province | |
| 87 km South East of Ashkenan, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 15 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 36 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 52 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >13.2 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91434 | IIEES | KRBR | E | 66.4 | 0.48 | 2014-01-10 14:32:47 | 2014-01-10 03:27:00 | n |
| 91435 | IIEES | SHGR | E | 17 | 0.56 | 2014-01-10 14:33:44 | 2014-01-10 03:27:00 | n |
| 91436 | IIEES | SHGR | N | 23.7 | 0.44 | 2014-01-10 14:33:53 | 2014-01-10 03:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-01-10 14:31:15 | -0.02 | y | 223 | 65 | |||
| IIEES | BNDS | N | Sg | E | 2014-01-10 14:31:42 | 0.02 | y | 223 | 65 | |||
| IIEES | AHRM | Z | Pn | E | 2014-01-10 14:31:33 | 0.05 | y | 377 | 313 | |||
| IIEES | KRBR | Z | Pn | E | 2014-01-10 14:31:44 | -0.01 | y | 458 | 34 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-01-10 14:32:37 | -0.12 | y | 889 | 334 | |||
