Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2014-01-10 23:07:33.0 |
| Date & Time (Local) | 1392/10/21 02:37:33.0 |

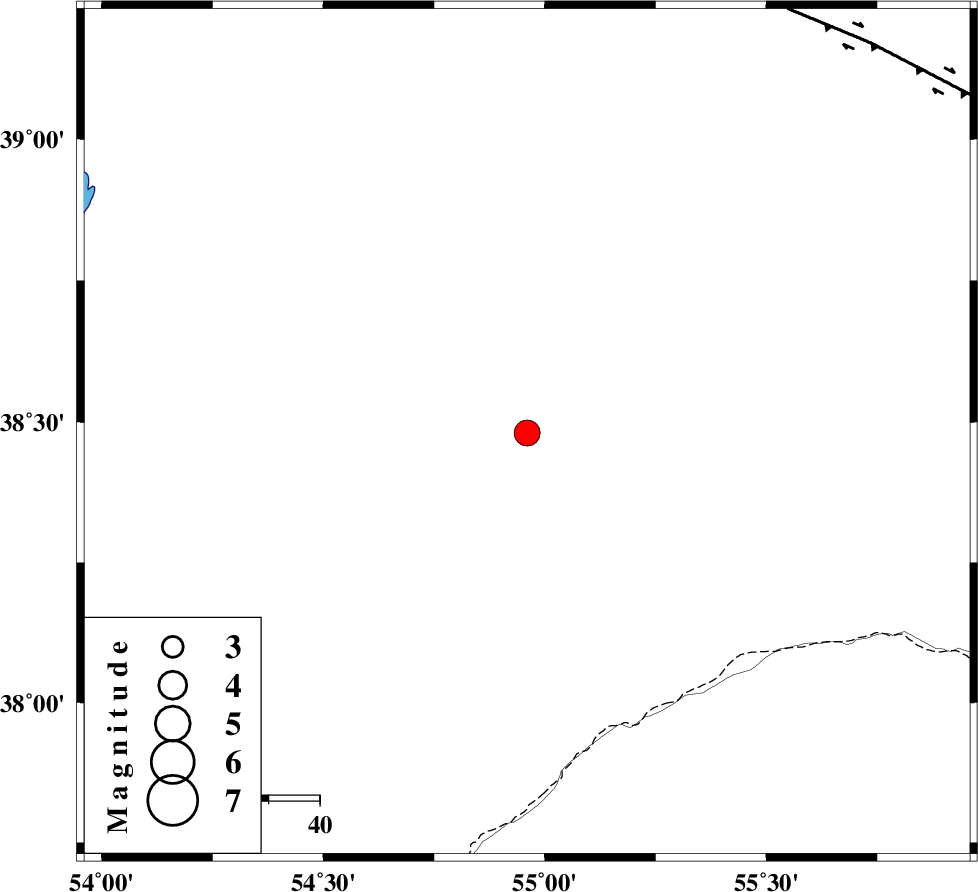

| Location | Lat:38.48 Lon: 54.96 |
| Region | Turkmenistan |
Nearest Cities |
|
| 76 km North West of Karand, Golestan Province | |
| 91 km North West of Qareh aghaj, Golestan Province | |
| 96 km North East of Dashliborun, Golestan Province | |
| 108 km North West of Moravehtappeh, Golestan Province | |
| 116 km North East of Enchehborun, Golestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 97 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 136 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91437 | IIEES | THKV | E | 76.3 | 0.6 | 2014-01-10 23:09:37 | 2014-01-11 12:11:00 | n |
| 91438 | IIEES | ZNJK | N | 30.6 | 0.48 | 2014-01-10 23:10:06 | 2014-01-11 12:11:00 | n |
| 91439 | IIEES | YZKH | E | 18.7 | 0.52 | 2014-01-10 23:10:15 | 2014-01-11 12:11:00 | n |
| 91440 | IIEES | YZKH | N | 16.7 | 0.52 | 2014-01-10 23:10:22 | 2014-01-11 12:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pn | E | 2014-01-10 23:08:09 | 0.14 | y | 232 | 111 | |||
| IIEES | BJRD | N | S | E | 2014-01-10 23:08:35 | -0.06 | y | 232 | 111 | |||
| IIEES | SHRO | E | Pn | E | 2014-01-10 23:08:16 | -0.16 | y | 290 | 161 | |||
| IIEES | TABS | Z | Pn | E | 2014-01-10 23:08:51 | 0.07 | y | 570 | 159 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-01-10 23:08:53 | 0.06 | y | 589 | 252 | |||
| IIEES | GRMI | Z | Pn | E | 2014-01-10 23:08:56 | -0.26 | y | 616 | 276 | |||
| IIEES | GRMI | E | S | E | 2014-01-10 23:09:58 | 0.11 | y | 616 | 276 | |||
| IIEES | YZKH | Z | Pn | E | 2014-01-10 23:09:04 | 0.16 | y | 677 | 183 | |||
