Event Specification
Magnitude |
4.9 |
| Date & Time (UTC) | 2014-02-13 08:35:50.0 |
| Date & Time (Local) | 1392/11/24 12:05:50.0 |

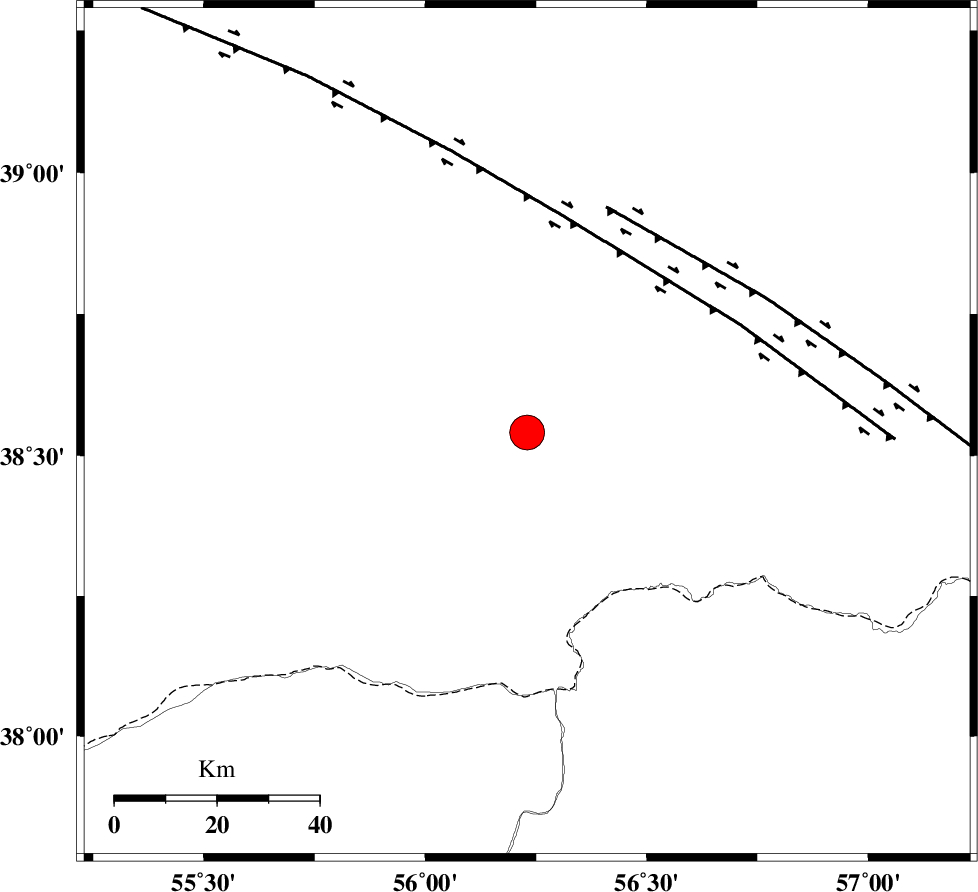

| Location | Lat:38.54 Lon: 56.23 |
| Region | Turkmenistan |
Nearest Cities |
|
| 59 km North West of Yekehsoud-e paeen, Khorasan(north) Province | |
| 70 km North of Qazanqayeh, Golestan Province | |
| 75 km North East of Moravehtappeh, Golestan Province | |
| 89 km North East of Karand, Golestan Province | |
| 89 km North of Garmab, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 43 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 47 km | |
| MAIN_KOPEHDAGH_F3 (Length: 96 km) , Distance to epicenter: 124 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91791 | IIEES | GRMI | E | 248.1 | 0.56 | 2014-02-13 08:38:49 | 2014-02-13 09:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2014-02-13 08:36:13 | 0.04 | y | 139 | 132 | |||
| IIEES | BJRD | N | Sg | E | 2014-02-13 08:36:30 | 0.01 | y | 139 | 132 | |||
| IIEES | SHRO | E | Pn | E | 2014-02-13 08:36:32 | 0.12 | y | 282 | 184 | |||
| IIEES | SHRO | E | Sg | E | 2014-02-13 08:37:09 | -0.04 | y | 282 | 184 | |||
| IIEES | SHRT | Z | Pn | E | 2014-02-13 08:37:18 | -0.21 | y | 654 | 145 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-02-13 08:37:24 | 0.03 | y | 697 | 255 | |||
| IIEES | GRMI | Z | P | E | 2014-02-13 08:37:27 | -0.11 | y | 726 | 275 | |||
| IIEES | GRMI | E | S | E | 2014-02-13 08:38:39 | 0.02 | y | 726 | 275 | |||
