Event Specification
Magnitude |
4.9 |
| Date & Time (UTC) | 2014-07-05 03:11:48.3 |
| Date & Time (Local) | 1393/4/14 07:41:48.3 |

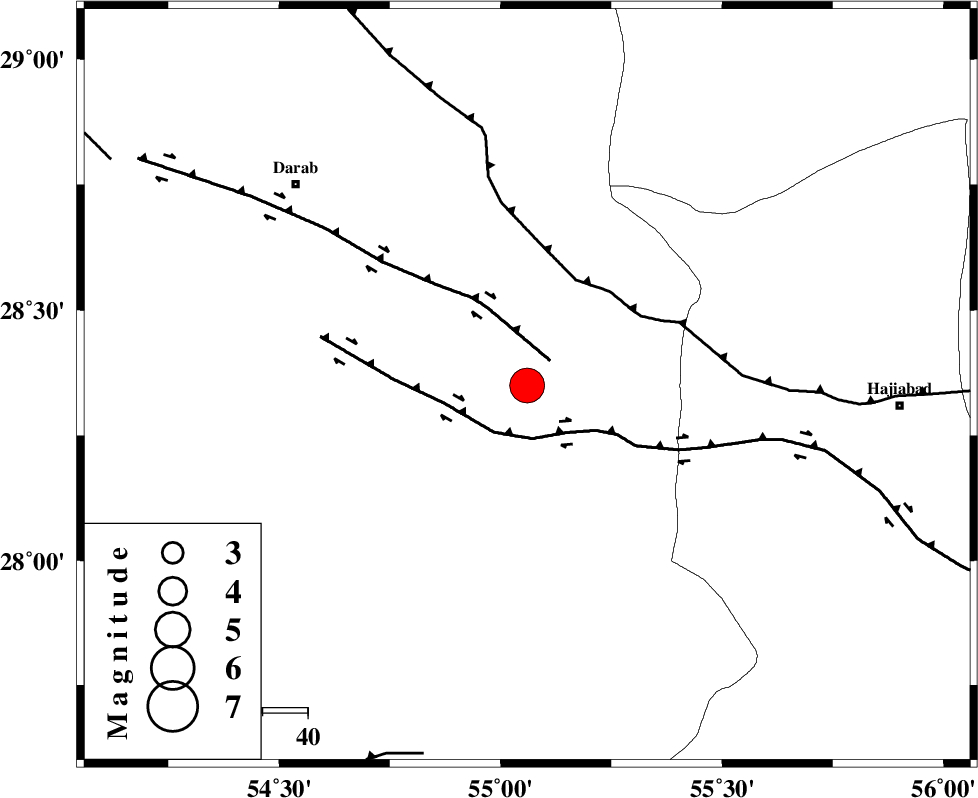

| Location | Lat:28.35 Lon: 55.06 |
| Region | Fars Province, 83 km West of Hajiabad |
Nearest Cities |
|
| 11 km of Rostaq, Fars Province | |
| 15 km North West of Doborji, Fars Province | |
| 20 km North West of Fadami, Fars Province | |
| 37 km South West of Tal bargah, Fars Province | |
| 49 km South East of Dehkheyr, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF1 (Length: 102 km) , Distance to epicenter: 8 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 12 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 26 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92738 | IIEES | KRBR | N | 5710.1 | 0.5 | 2014-07-05 03:13:01 | 2014-07-05 04:38:00 | n |
| 92739 | IIEES | KRBR | E | 8444.1 | 0.77 | 2014-07-05 03:13:02 | 2014-07-05 04:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-07-05 03:12:13 | -0.36 | y | 152 | 134 | |||
| IIEES | KRBR | Z | Pn | E | 2014-07-05 03:12:27 | 0.29 | y | 246 | 42 | |||
| IIEES | KRBR | N | Sg | E | 2014-07-05 03:12:57 | -0.43 | y | 246 | 42 | |||
| IIEES | AHRM | Z | Pn | E | 2014-07-05 03:12:42 | 0.07 | y | 372 | 280 | |||
| IIEES | YZKH | Z | Pn | E | 2014-07-05 03:12:52 | 0.76 | y | 450 | 354 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-07-05 03:13:08 | 0.57 | y | 575 | 75 | |||
| IIEES | CHBR | Z | Pn | E | 2014-07-05 03:13:12 | 0.15 | y | 619 | 118 | |||
| IIEES | TABS | Z | Pn | E | 2014-07-05 03:13:13 | 0.43 | y | 620 | 18 | |||
| IIEES | TABS | E | Sg | E | 2014-07-05 03:14:40 | -0.01 | y | 620 | 18 | |||
| IIEES | SHGR | Z | Pn | E | 2014-07-05 03:13:26 | -0.41 | y | 732 | 306 | |||
| IIEES | GHVR | Z | Pn | E | 2014-07-05 03:13:31 | -0.42 | y | 770 | 333 | |||
| IIEES | SHRT | Z | Pn | E | 2014-07-05 03:13:32 | 0.36 | y | 771 | 39 | |||
| IIEES | ASAO | Z | Pn | E | 2014-07-05 03:13:39 | -0.47 | y | 837 | 326 | |||
| IIEES | SHRO | Z | Pn | E | 2014-07-05 03:13:41 | -0.79 | y | 854 | 6 | |||
| IIEES | BJRD | Z | Pn | E | 2014-07-05 03:14:07 | 0.01 | y | 1060 | 11 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-07-05 03:14:11 | -1.1 | y | 1100 | 329 | |||
