Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2014-07-23 00:02:20.5 |
| Date & Time (Local) | 1393/5/1 04:32:20.5 |
| Location | Lat:32.85 Lon: 48.28 |
| Region | Khoozestan Province, 44 km North of Andimeshk |
Nearest Cities |
|
| 10 km North of Sorkhakan, Khoozestan Province | |
| 11 km North of Bidruyeh, Khoozestan Province | |
| 19 km North of Hoseinieh, Khoozestan Province | |
| 44 km North of Andimeshk, Khoozestan Province | |
| 50 km North West of Shuy, Khoozestan Province | |
| Depth | 14 km |
| Agency | |

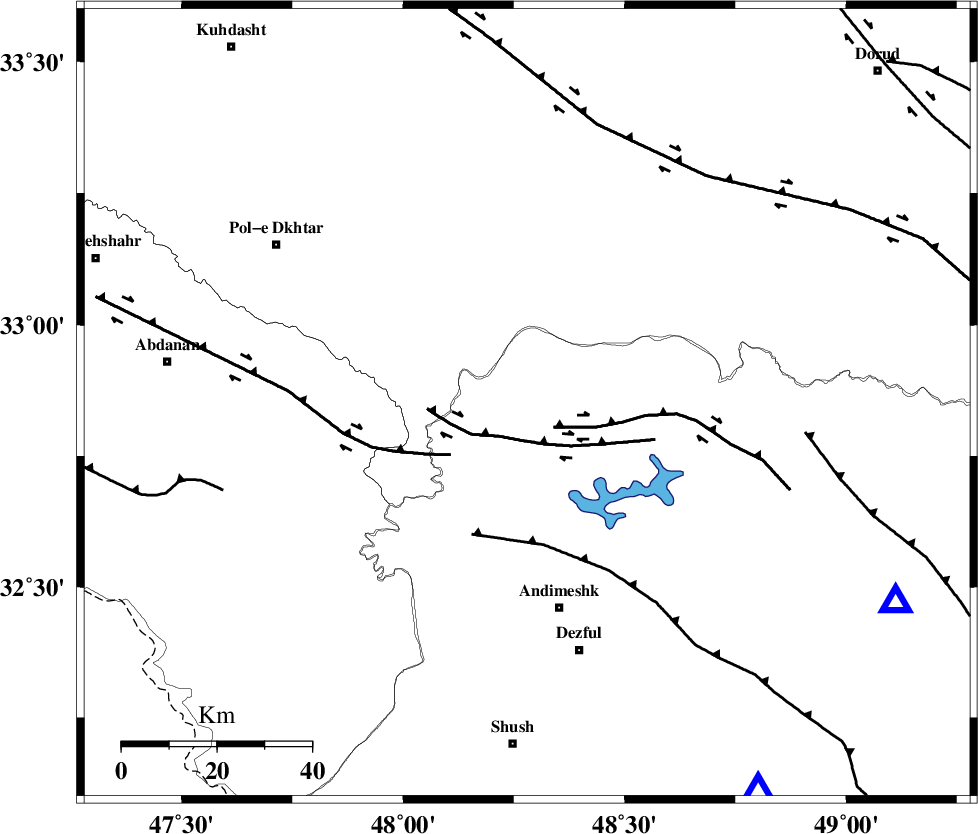

Faults within 150 km: |
|
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 7 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 8 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 19 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92837 | IIEES | SHGR | E | 199.9 | 0.4 | 2014-07-23 00:02:57 | 2014-07-23 01:28:00 | n |
| 92838 | IIEES | SHGR | N | 178.6 | 0.44 | 2014-07-23 00:03:05 | 2014-07-23 01:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-07-23 00:02:36 | -0.48 | y | 95.6 | 149 | |||
| IIEES | SHGR | N | Sg | E | 2014-07-23 00:02:48 | 0.25 | y | 95.6 | 149 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-07-23 00:02:51 | -0.06 | y | 185 | 57 | |||
| IIEES | ASAO | Z | Pn | E | 2014-07-23 00:02:59 | 0.16 | y | 248 | 40 | |||
| IIEES | ASAO | N | Sg | E | 2014-07-23 00:03:30 | -0.21 | y | 248 | 40 | |||
| IIEES | SNGE | Z | Pn | E | 2014-07-23 00:03:01 | 0.01 | y | 263 | 341 | |||
| IIEES | GHVR | Z | Pn | E | 2014-07-23 00:03:09 | 0.38 | y | 329 | 56 | |||
