Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2014-07-28 11:36:42.1 |
| Date & Time (Local) | 1393/5/6 16:06:42.1 |

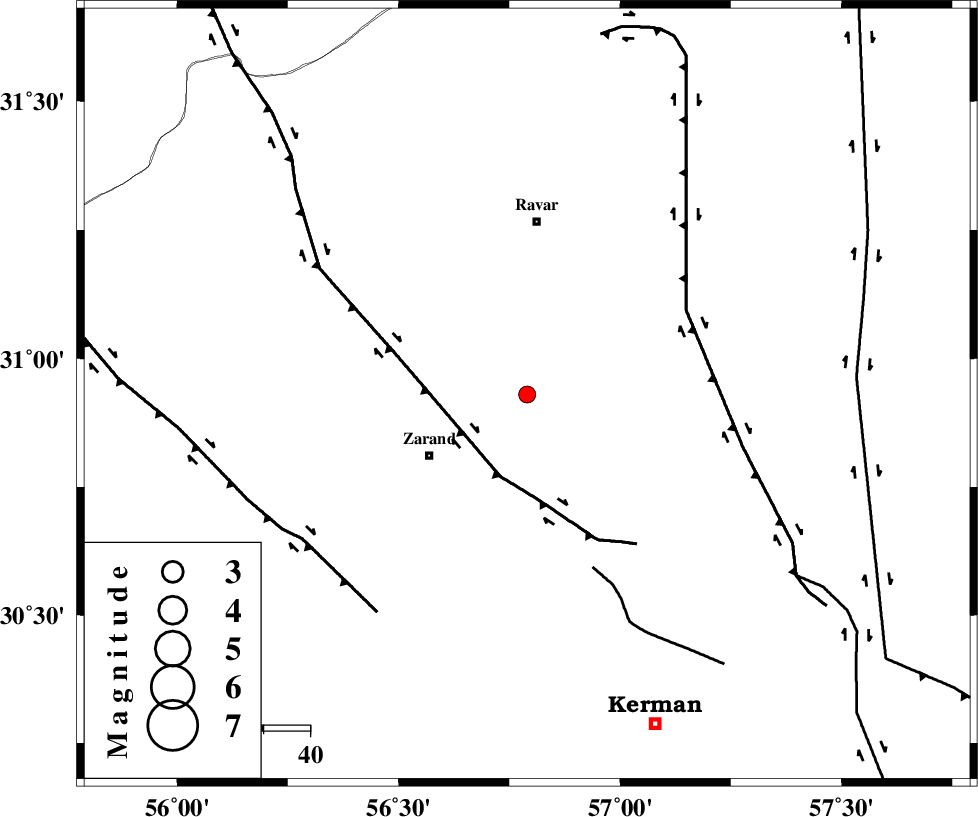

| Location | Lat:30.93 Lon: 56.79 |
| Region | Kerman Province, 25 km North-East of Zarand |
Nearest Cities |
|
| 9 km North of Hatkan, Kerman Province | |
| 18 km East of Ahmadi, Kerman Province | |
| 23 km North of Khankuk, Kerman Province | |
| 25 km North East of Zarand, Kerman Province | |
| 26 km North East of Bahaabad, Kerman Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 19 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 39 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 40 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92868 | IIEES | BSRN | E | 22.9 | 0.28 | 2014-07-28 11:37:42 | 2014-07-28 12:57:00 | n |
| 92869 | IIEES | BSRN | N | 21 | 0.24 | 2014-07-28 11:37:43 | 2014-07-28 12:57:00 | n |
| 92870 | IIEES | TABS | N | 12.9 | 0.48 | 2014-07-28 11:38:12 | 2014-07-28 12:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2014-07-28 11:37:00 | 0 | y | 105 | 181 | |||
| IIEES | YZKH | Z | Pn | E | 2014-07-28 11:37:22 | -0.04 | y | 264 | 308 | |||
| IIEES | YZKH | N | Sg | E | 2014-07-28 11:37:56 | 0.01 | y | 264 | 308 | |||
| IIEES | TABS | Z | Pn | E | 2014-07-28 11:37:27 | 0.03 | y | 304 | 6 | |||
