Event Specification
Magnitude |
4.6 |
| Date & Time (UTC) | 2014-08-17 11:24:17.7 |
| Date & Time (Local) | 1393/5/26 15:54:17.7 |

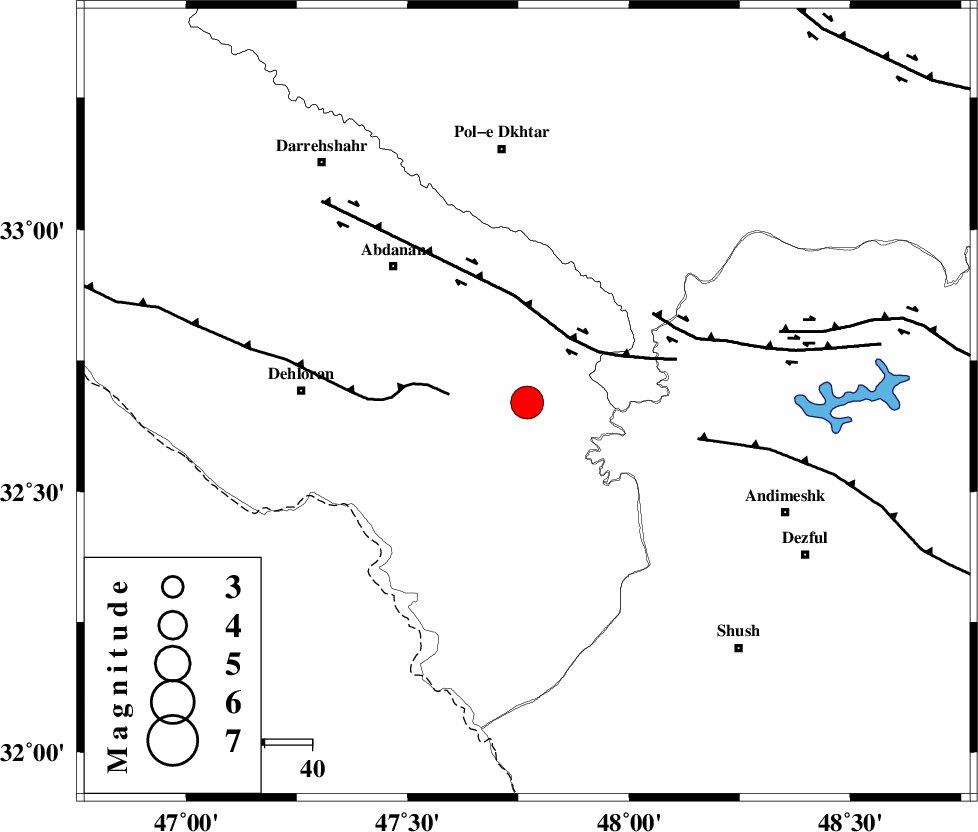

| Location | Lat:32.67 Lon: 47.77 |
| Region | Ilam Province, 48 km East of Dehloran |
Nearest Cities |
|
| 32 km South East of Sarabbagh, Ilam Province | |
| 40 km South East of Abdanan, Ilam Province | |
| 41 km North East of Musian, Ilam Province | |
| 45 km West of Bidruyeh, Khoozestan Province | |
| 45 km West of Hoseinieh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 16 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 17 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 33 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92973 | IIEES | AHRM | N | 293.4 | 0.44 | 2014-08-17 11:27:12 | 2014-08-17 04:24:00 | n |
| 92974 | IIEES | GHIR | E | 110.6 | 0.4 | 2014-08-17 11:27:22 | 2014-08-17 04:24:00 | n |
| 92975 | IIEES | BNDS | N | 79.2 | 0.52 | 2014-08-17 11:28:18 | 2014-08-17 04:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-17 11:24:37 | 0.04 | y | 115 | 122 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-17 11:24:50 | -0.16 | y | 115 | 122 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-17 11:25:02 | 0.07 | y | 295 | 44 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-17 11:25:24 | -0.28 | y | 474 | 40 | |||
| IIEES | CHTH | E | Sg | E | 2014-08-17 11:26:30 | 0.11 | y | 474 | 40 | |||
| IIEES | AHRM | Z | Pn | E | 2014-08-17 11:25:32 | 0.01 | y | 540 | 140 | |||
| IIEES | GHIR | Z | Pn | E | 2014-08-17 11:25:52 | -0.04 | y | 697 | 133 | |||
| IIEES | GHIR | E | S | E | 2014-08-17 11:27:01 | 0.39 | y | 697 | 133 | |||
