Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2014-08-18 04:39:32.1 |
| Date & Time (Local) | 1393/5/27 09:09:32.1 |
| Location | Lat:32.77 Lon: 47.73 |
| Region | Ilam Province, 42 km South of Pol-e dokhtar |
Nearest Cities |
|
| 21 km South East of Sarabbagh, Ilam Province | |
| 30 km South East of Abdanan, Ilam Province | |
| 37 km South of Sarab hammam, Lorestan Province | |
| 43 km South of Pol-e dokhtar, Lorestan Province | |
| 43 km North East of Musian, Ilam Province | |
| Depth | 14 km |
| Agency | |

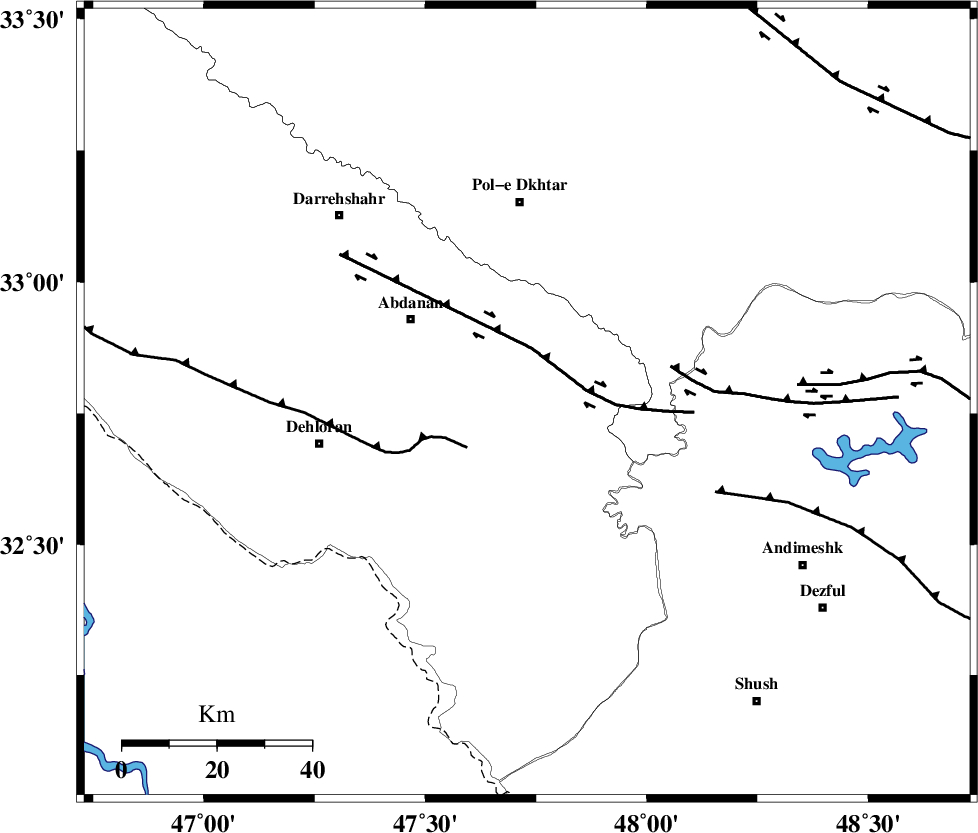

Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 12 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 16 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 31 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92992 | IIEES | SHGR | N | 10244.6 | 0.61 | 2014-08-18 04:40:19 | 2014-08-18 06:28:00 | n |
| 92993 | IIEES | SHGR | E | 11517 | 0.61 | 2014-08-18 04:40:22 | 2014-08-18 06:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-18 04:39:52 | -0.08 | y | 125 | 126 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-18 04:40:08 | -0.19 | y | 125 | 126 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-18 04:40:09 | 0.8 | y | 234 | 62 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-18 04:40:11 | -0.35 | y | 260 | 352 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-18 04:40:16 | 0.19 | y | 290 | 47 | |||
| IIEES | ASAO | N | Sg | E | 2014-08-18 04:40:53 | -0.19 | y | 290 | 47 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-18 04:40:37 | -0.11 | y | 467 | 41 | |||
| IIEES | CHTH | E | S | E | 2014-08-18 04:41:26 | -0.15 | y | 467 | 41 | |||
